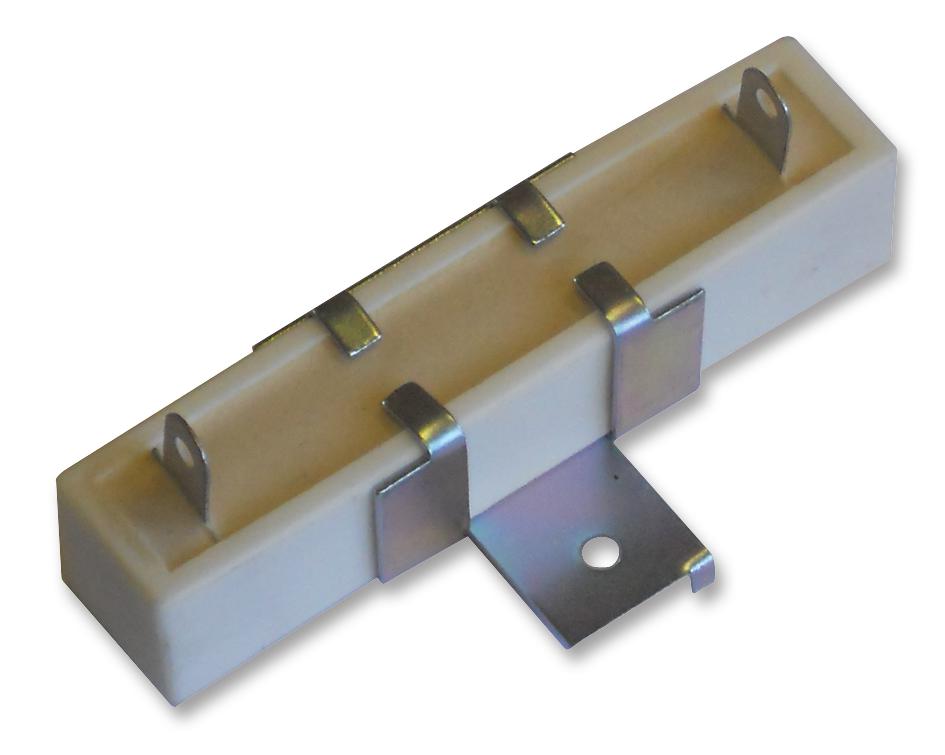

TTElectronics - Welwyn WPRT20AB33RJB270 Power Resistor
The wirewound power radial terminal resistor series is designed for high overload capability and electrical robustness in various industrial applications. Featuring quick connect or soldered tag terminals, optional mounting brackets, and flameproof casing, these resistors meet AEC-Q200 qualification standards. Made with high purity ceramic rods and wire resistance alloys, they offer excellent thermal stability, solvent resistance, and are RoHS compliant. Suitable for use in high-shock and vibration environments, they provide reliable performance with a temperature range from -55°C to +155°C and resistances from 1Ω to 820Ω.
TTElectronics - Welwyn WPRT20AB33RJB270 Power Resistor Specifications:
- Power rating: 10 to 50 watts at 70°C
- Resistance range: 1Ω to 820Ω
- Resistance tolerance: ±5%
- Temperature range: -55°C to +155°C
- Thermal impedance: 100°C/W typical
- Isolation voltage: 1000V
- Wire material: Resistance alloy
- Terminal material: Tin-plated steel
- Flammability: Flameproof case
- Certifications: AEC-Q200, RoHS compliant
- Construction: Ceramic rod with wire element, end caps, and ceramic case
- Voltage proof: 1kV for 60 seconds
- Solvent resistance: Resistant to industrial solvents
- Mounting: Quick connect or soldered, optional brackets
- Mechanical strength: Meets IEC 86.2.21
- Solderability: Min. 95% coverage
Buy the Buy TT Electronics WPRT Series Resistors Part Number WPRT20AB33RJB270 Online
Purchase the TT Electronics Power Resistor WPRT20AB33RJB270 online to benefit from high overload capability, flameproof construction, and RoHS compliance. These resistors feature quick connect and soldered terminals, optional mounting brackets, and a robust ceramic case for high-shock and vibration applications. With a resistance range of 1Ω to 820Ω and power ratings up to 50W at 70°C, they deliver reliable thermal performance across -55°C to +155°C. Ideal for industrial, control, and power systems, ensuring durability and safety on demand.
Order your TT Electronics series WPRT20AB33RJB270 power resistor today and ensure your industrial projects operate with dependable thermal stability and high overload capacity.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn WPRT20AB33RJB270?
You can click on the BUY or RFQ button to purchase WPRT20AB33RJB270 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part WPRT20AB33RJB270?
You can download the WPRT20AB33RJB270 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of WPRT20AB33RJB270?
TTElectronics - Welwyn
