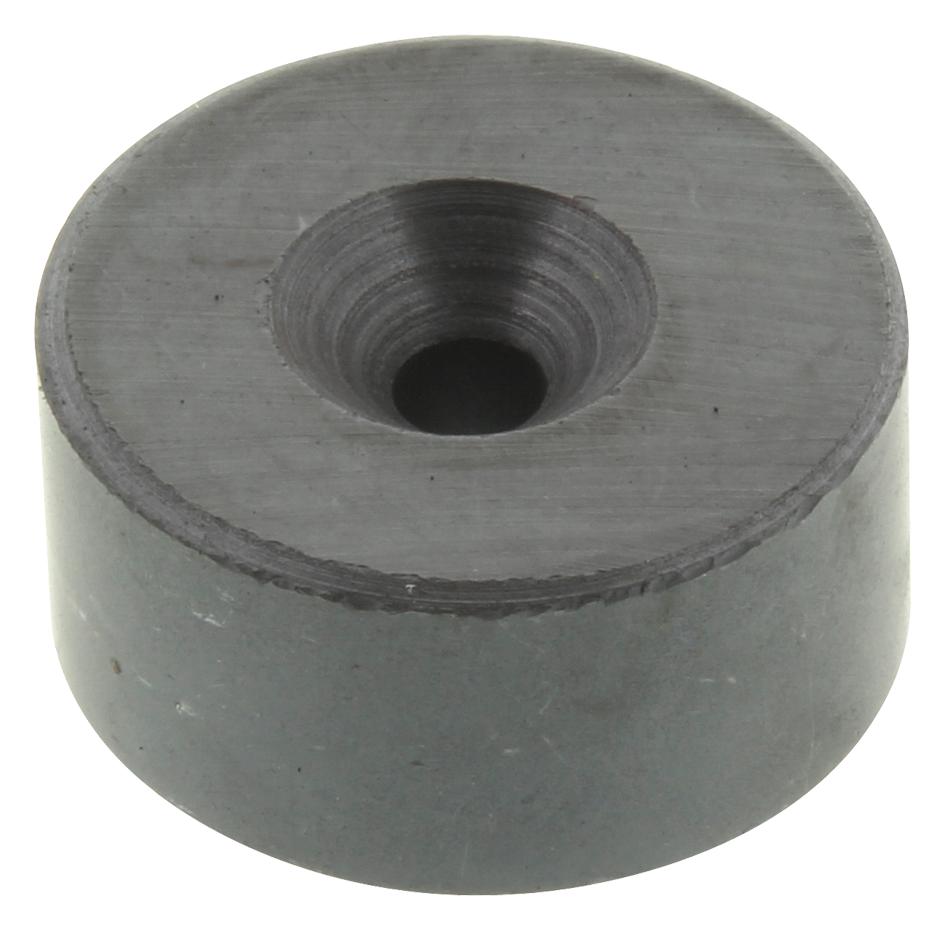

Turck DMR31-15-5 Datasheet & Stock

Magnetic-inductive proximity switches are actuated by magnetic fields. They detect permanent magnets through non-ferromagnetic materials such as wood, plastic, non-ferrous metals, aluminum or stainless steel. Turck magnetic field sensors obtain a particularly high switching distance using the actuation magnets. As they are available in a number of sizes and versions, they enable a wide range of possibilities for detection, particularly in constructions where mounting space is limited or other difficult conditions prevail. The diagram shows a typical characteristic curve of the magnetic flux density [in mT] based on the distance in the axial direction and at room temperature.




Housing material Metal, SrFe

Attainable switching distance approx. 90 mm with magnetic field sensors (BIM) in models (E)M12E, M18 and G12SK

Attainable switching distance approx. 78 mm with magnetic field sensors (BIM) in models EH6.5, EG08 and M12-S1209
