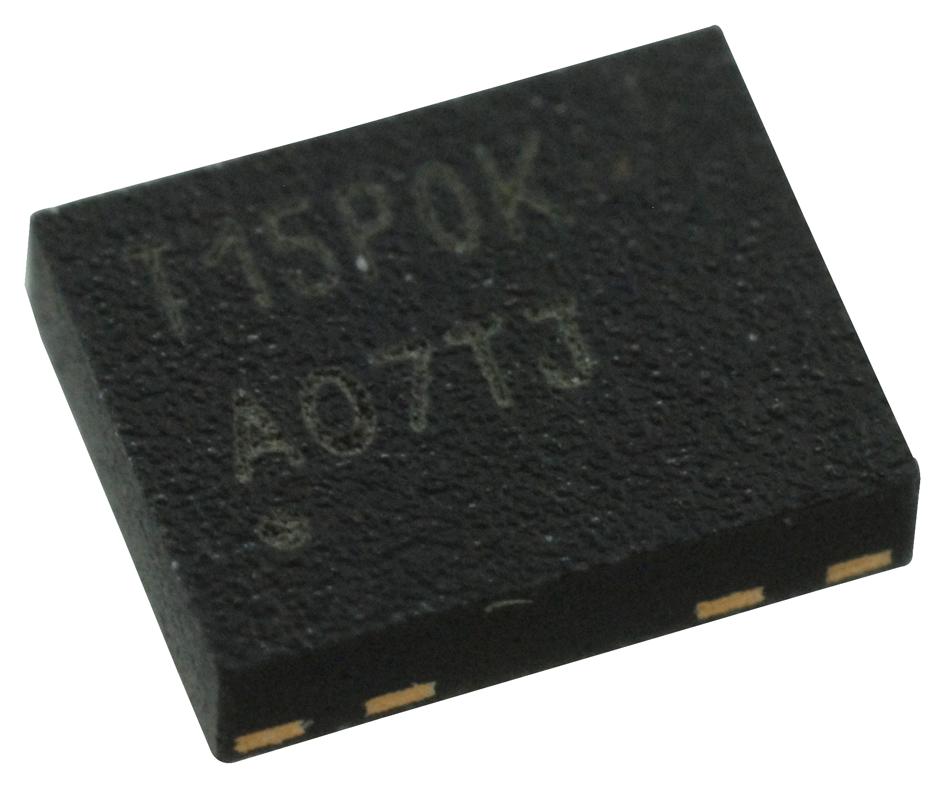

TXC TC15000MBDT CMOS MEMS Oscillator
The TC Series CMOS MEMS oscillator offers a frequency range from 1 to 150MHz with high stability, low power consumption, and a compact molded plastic package measuring approximately 3.2x2.5x0.75 mm. It operates at supply voltages of 1.8V, 2.5V, and 3.3V, with a frequency stability of +25ppm across temperatures from -40°C to +85°C. Suitable for digital signal processing, computer peripherals, and NB computers, it features a CMOS output, low jitter, and fast start-up time, making it ideal for reliable electronic applications.
TXC TC15000MBDT CMOS MEMS Oscillator Specifications:
- Output Frequency Range: 1~150MHz
- Output Type: CMOS
- Supply Voltage: 1.8V, 2.5V, 3.3V
- Frequency Stability: +25ppm
- Operating Temperature Range: -40°C to +85°C
- Output Load: 15pF Max.
- Supply Current: 30.0 mA Max. at 60.0~133.33 MHz, Vdd=3.3V
- Rise / Fall Time: 3 ns max.
- Start-up Time: 40 ms max.
- Storage Temperature Range: -55°C to +125°C
- Dimensions: 3.2x2.5x0.75 mm
- Package: Molded plastic
- RoHS Compliant / Pb Free
Buy the Conan Series TC CMOS Oscillator: TC15000MBDT
Purchase the Conan Series CMOS MEMS Oscillator now for your electronic projects. Featuring a frequency range of 1 to 150MHz, low power consumption, and high stability, it is ideal for digital signal processing, computer peripherals, and NB computers. Its compact size, fast start-up, and RoHS compliance make it a reliable choice for modern electronic designs. Order online today to secure this versatile oscillating component and optimize your device performance with proven quality and precision.
Order your Conan Series TC CMOS Oscillator today and enhance your electronic designs with reliable, high-stability oscillators perfect for digital and computing applications.
Frequently Asked Questions
Where can I buy TXC TC15000MBDT?
You can click on the BUY or RFQ button to purchase TC15000MBDT from an authorized TXC distributor.
How do I troubleshoot issues or seek technical support for part TC15000MBDT?
You can download the TC15000MBDT datasheet or visit the TXC website for support.
Who is the manufacturer of TC15000MBDT?
TXC
