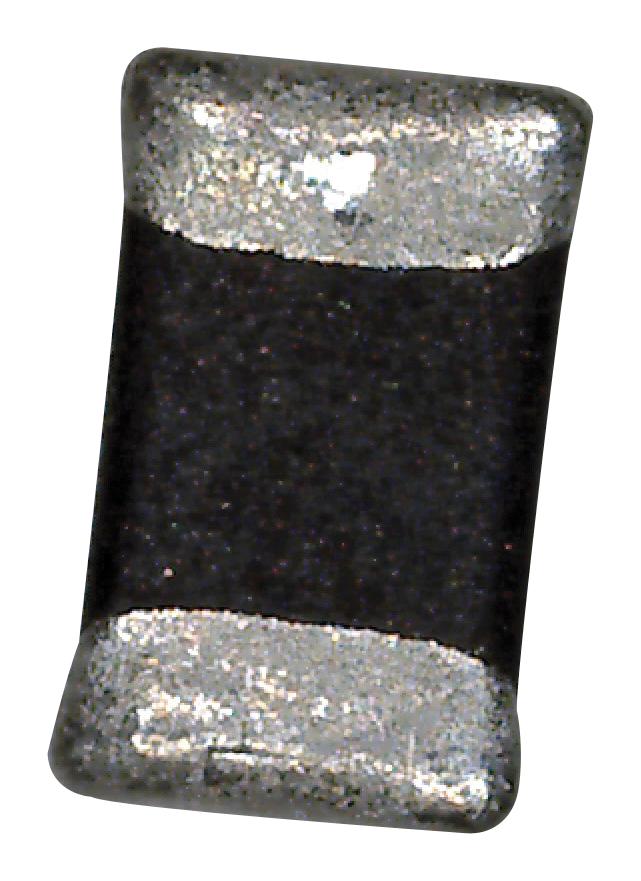

Taiyo Yuden BRC2012T2R2MD Chip Power Inductor
The TAIYO YUDEN BRC2012T2R2MD is a wire-wound chip power inductor specifically engineered for use in a wide range of electronic applications, including AV equipment, OA equipment, and information communication equipment. With a 2.2uH inductance and a 1A rated current, this inductor provides efficient power management in compact designs. It boasts a robust operating temperature range of -40°C to +105°C and is compliant with RoHS standards, ensuring environmentally responsible usage. The inductor's construction minimizes DC resistance and maximizes self-resonant frequency, contributing to overall circuit performance. It is ideal for applications requiring stable inductance and reliable power delivery.
Taiyo Yuden BRC2012T2R2MD Chip Power Inductor Specifications:
- Inductance: 2.2 uH ± 20 %
- Case Size (EIA/JIS): 0805/2012
- Rated Current (max): 1 A
- Saturation Current (max): 1.1 A (⊿L=30%)
- Temperature Rise Current (max): 1 A (⊿T=40℃)
- DC Resistance (max): 0.143 Ω
- DC Resistance (typ): 0.11 Ω
- LQ Measuring Frequency: 1 MHz
- Self Resonant Frequency (min): 350 MHz
- Operating Temp. Range: -40 to +105 ℃
- Temperature characteristic: ± 15 %
- RoHS Compliance: Yes
- REACH Compliance: Yes
- Halogen Free: Yes
- Soldering: Reflow
- Dimension L: 2.0 ±0.2 mm
- Dimension W: 1.25 ±0.2 mm
- Dimension T: Max 1.4 mm
- Dimension e: 0.5 ±0.2 mm
