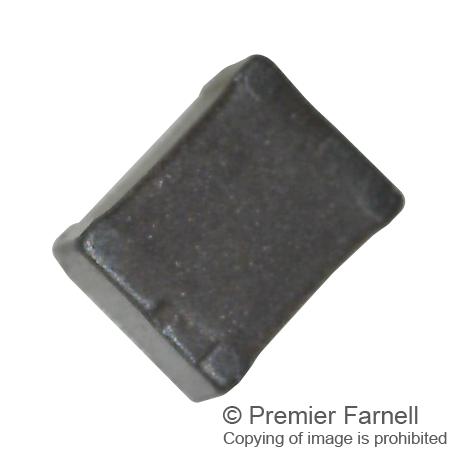

Taiyo Yuden BRL3225T101K Chip Power Inductor
The Taiyo Yuden BRL3225T101K is a wire-wound chip power inductor designed for a variety of electronic applications, including AV equipment, OA equipment, and general-purpose electronic devices. It offers a 100uH inductance with a ±10% tolerance, a rated current of 0.25A, and a 3225 (EIA/JIS) case size. The inductor is characterized by its robust construction and reliable performance, making it suitable for demanding applications. It is RoHS compliant and halogen free, aligning with environmental standards. The BRL3225T101K is a preferred component for designers seeking a compact and efficient power inductor solution.
Taiyo Yuden BRL3225T101K Chip Power Inductor Specifications:
- Inductance: 100 uH ± 10 %
- Case Size (EIA/JIS): 1210/3225
- Rated Current (max): 0.25 A
- Saturation Current (max): 0.27 A (⊿L=30%)
- Temperature Rise Current (max): 0.25 A (⊿T=40℃)
- DC Resistance (max): 3 Ω
- DC Resistance (typ): 2.5 Ω
- LQ Measuring Frequency: 0.1 MHz
- Self Resonant Frequency (min): 5 MHz
- Operating Temp. Range: -40 to +105 ℃
- Temperature characteristic: ± 15 %
- RoHS Compliance: Yes
- REACH Compliance: Yes
- Halogen Free: Yes
- Soldering: Reflow
- Dimension L: 3.2 ±0.2 mm
- Dimension W: 2.5 ±0.2 mm
- Dimension T: Max 1.7 mm
- Dimension e: 0.75 ±0.2 mm
Buy the BRL3225T101K Taiyo Yuden Chip Power Inductor | myMectronic
Securely purchase the Taiyo Yuden BRL3225T101K Chip Power Inductor online for reliable performance and fast delivery.
Buy Now
Frequently Asked Questions
Where can I buy Taiyo Yuden BRL3225T101K?
You can click on the BUY or RFQ button to purchase BRL3225T101K from an authorized Taiyo Yuden distributor.
How do I troubleshoot issues or seek technical support for part BRL3225T101K?
You can download the BRL3225T101K datasheet or visit the Taiyo Yuden website for support.
Who is the manufacturer of BRL3225T101K?
Taiyo Yuden
