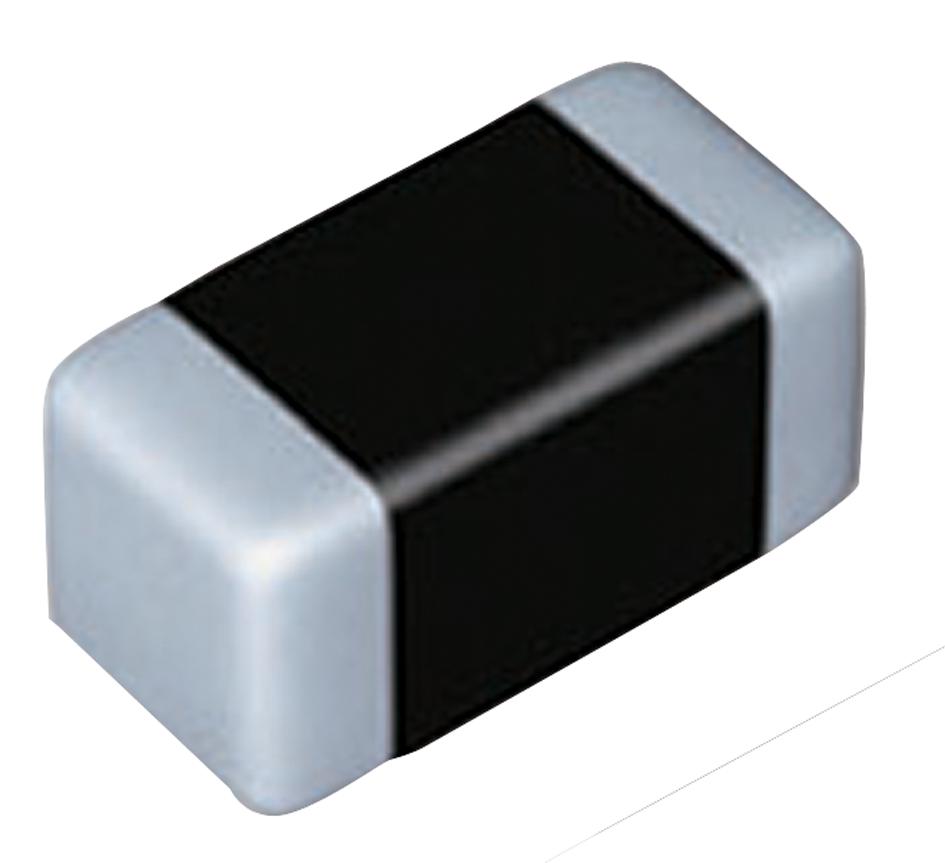

Taiyo Yuden CB2518T1R0MV Wire-wound chip inductor
The CB2518T1R0MV is a high-quality wire-wound chip inductor designed for industrial and automotive safety applications. It features a 1.0 µH inductance with a tolerance of +20%, rated current of 1200mA, and saturation current of 1500mA. Encased in a compact 1007/2518 case size, it offers low DC resistance of approximately 0.062 to 0.0782 ohms and operates across temperatures from -40°C to 105°C. These inductors comply with RoHS standards, are halogen-free, and suitable for reflow soldering, making them ideal for demanding electronic environments.
Taiyo Yuden CB2518T1R0MV Wire-wound chip inductor Specifications:
- Inductance: 1.0 µH (+20%)
- Rated Current: 1200mA
- Saturation Current: 1500mA
- DC Resistance: approximately 0.062-0.0782 ohms
- Case Size: 1007/2518, Length 2.5mm
- Operating Temperature Range: -40°C to 105°C
- Self-resonant Frequency: 100MHz
- RoHS Compliant: Yes
- Halogen Free: Yes
- Soldering Method: Reflow
Buy the Taiyo Yuden Series CB: Wire-wound Chip Inductors 1.0 µH: CB2518T1R0MV
Purchase the Taiyo Yuden CB2518T1R0MV wire-wound chip inductor online today and enjoy top-tier performance for automotive and industrial electronics. Its 1.0 µH inductance with a 1200mA rated current ensures efficient power management. The compact 1007 case size makes it suitable for space-constrained designs, while its RoHS compliance and halogen-free construction guarantee eco-friendly and safe operation. Ideal for demanding environments, this inductor is compatible with reflow soldering and provides high reliability for safety-critical applications.
Buy Taiyo Yuden CB2518T1R0MV now and experience reliable power filtering Performance in industrial and automotive environments.
Frequently Asked Questions
Where can I buy Taiyo Yuden CB2518T1R0MV?
You can click on the BUY or RFQ button to purchase CB2518T1R0MV from an authorized Taiyo Yuden distributor.
How do I troubleshoot issues or seek technical support for part CB2518T1R0MV?
You can download the CB2518T1R0MV datasheet or visit the Taiyo Yuden website for support.
Who is the manufacturer of CB2518T1R0MV?
Taiyo Yuden
