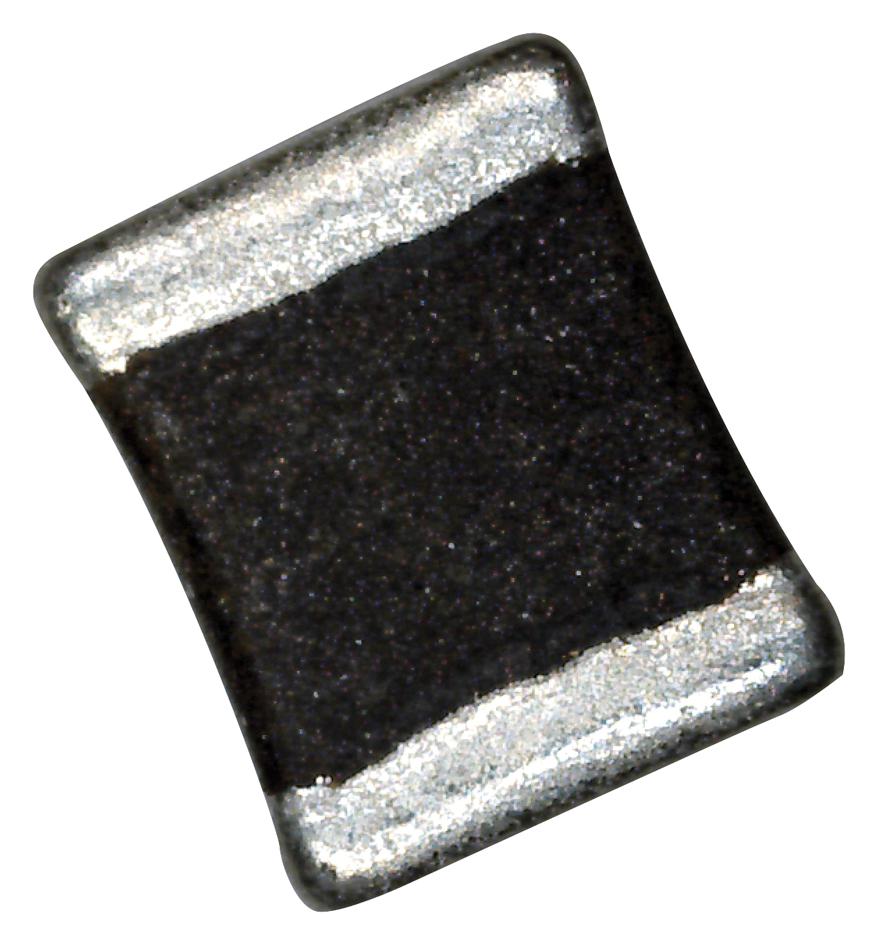

Taiyo Yuden CBC3225T100MR Chip Power Inductor
The Taiyo Yuden CBC3225T100MR is a wire-wound chip power inductor designed for use in a variety of electronic applications, including AV equipment, OA equipment, and general electronic devices. It offers a 10uH inductance, a rated current of 0.9A, and a DC resistance of 0.133Ω (typical). The inductor is RoHS compliant and halogen free, making it suitable for environmentally conscious designs. Its compact 3225 size and robust construction ensure reliable performance in demanding environments. Always consult the full datasheet for detailed specifications and application guidelines.
Taiyo Yuden CBC3225T100MR Chip Power Inductor Specifications:
- Inductance: 10 uH ± 20 %
- Case Size (EIA/JIS): 1210/3225
- Rated Current (max): 0.9 A
- Saturation Current (max): 0.9 A (⊿L=30%)
- Temperature Rise Current (max): 0.9 A (⊿T=40℃)
- DC Resistance (max): 0.1729 Ω
- DC Resistance (typ): 0.133 Ω
- LQ Measuring Frequency: 0.1 MHz
- Self Resonant Frequency (min): 23 MHz
- Operating Temperature Range: -40 to +105 ℃
- Temperature Characteristic: ± 20 %
- RoHS Compliance: Yes
- REACH Compliance: Yes
- Halogen Free: Yes
- Soldering: Reflow
- Dimension L: 3.2 ±0.2 mm
- Dimension W: 2.5 ±0.2 mm
- Dimension T: 2.5 ±0.2 mm
- Dimension e: 0.6 ±0.3 mm
Buy the CBC3225T100MR TAIYO YUDEN Chip Power Inductor | myMectronic
Purchase the TAIYO YUDEN CBC3225T100MR Chip Power Inductor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Taiyo Yuden CBC3225T100MR?
You can click on the BUY or RFQ button to purchase CBC3225T100MR from an authorized Taiyo Yuden distributor.
How do I troubleshoot issues or seek technical support for part CBC3225T100MR?
You can download the CBC3225T100MR datasheet or visit the Taiyo Yuden website for support.
Who is the manufacturer of CBC3225T100MR?
Taiyo Yuden
