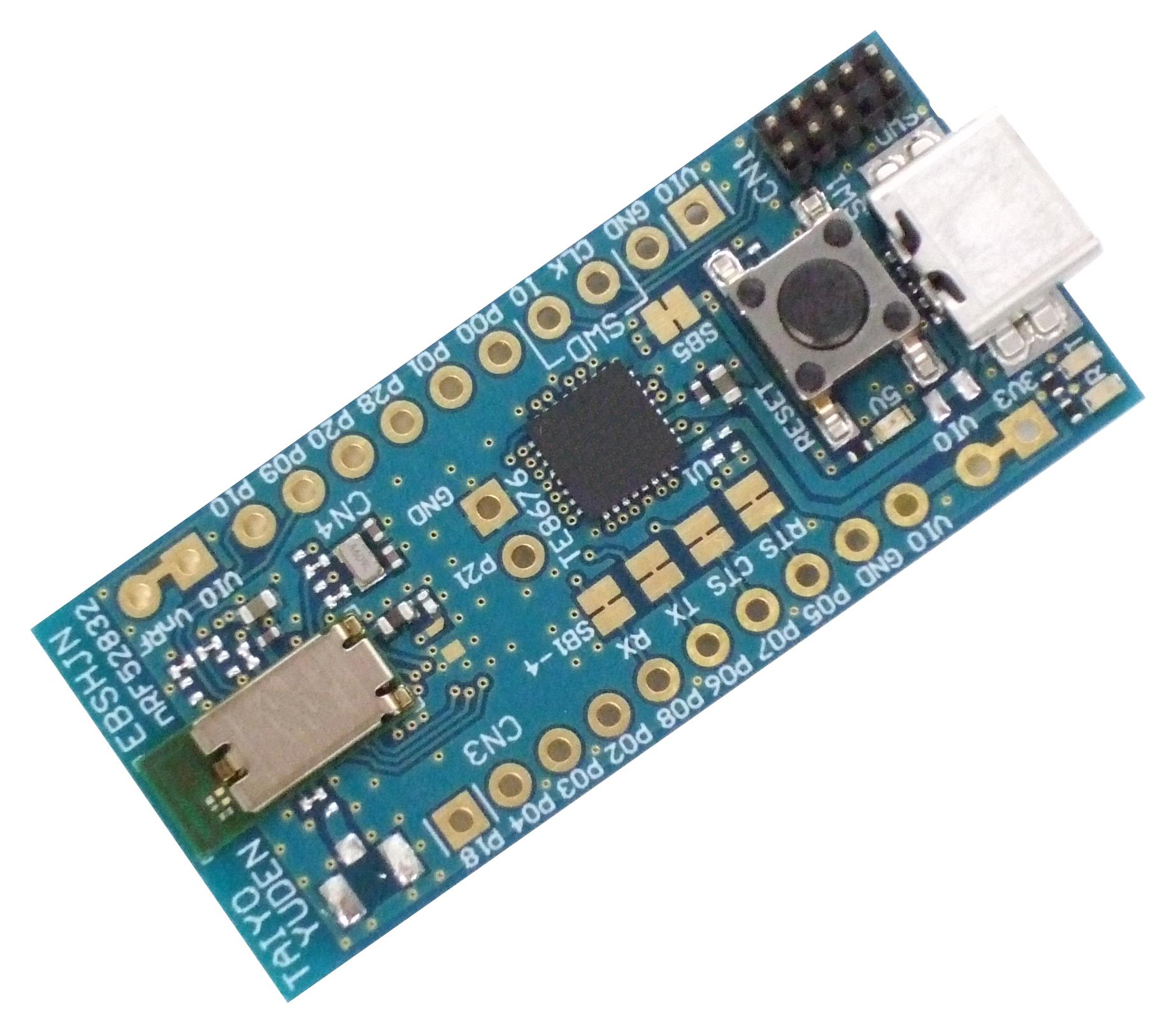

Taiyo Yuden EBSHJNZWZ Bluetooth Low Energy Evaluation Board
The Taiyo Yuden EBSHJNZWZ evaluation board offers a convenient platform for evaluating and developing applications for the EYSHJN series Bluetooth low energy modules. It includes a USB serial UART interface for easy communication and a SWD connector for software development. The board supports Nordic nRF52832 / ARM Cortex-M4F processor and is compatible with SEGGER Embedded Studio, MDK-ARM Keil uVision5, and nRFgo Studio. Users can leverage this board for prototyping and testing Bluetooth low energy applications in various industrial settings.
Taiyo Yuden EBSHJNZWZ Bluetooth Low Energy Evaluation Board Specifications:
- Module: EYSHJN Series (11.3mm x 5.1mm x 1.3mm MAX)
- Processor: Nordic nRF52832 / ARM Cortex-M4F 32 bit
- Pin Configuration: 28-pin Land Grid Array / 15 GPIOs / SWD
- USB Interface: Serial UART
- SWD Connector: For software development
- Power Supply: 3.3V (default from FT232RQ)
- Pin Pitch: 2.54mm
- CN3-CN4 Distance: 15.24mm
- LED D1: 3.3V Indicator
- LED D2: UART TX Indicator
- LED D3: UART RX Indicator
- Reset Button: SW1 (active low)
- 32kHz Clock: Internal or external crystal (selectable)
- Current Consumption (RC oscillator): Around 2uA average
Buy the EBSHJNZWZ Taiyo Yuden Bluetooth Low Energy Evaluation Board | myMectronic
Purchase the Taiyo Yuden EBSHJNZWZ evaluation board securely and reliably to accelerate your Bluetooth low energy development process.
