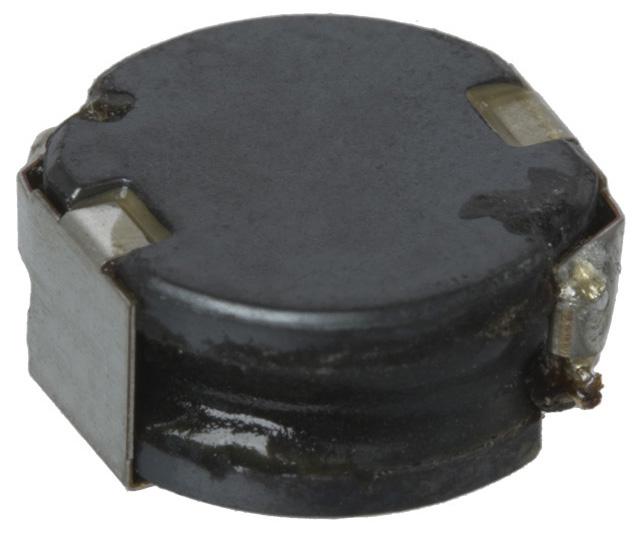

Taiyo Yuden EST0645T100MDGA High Power Inductor
The EST0645T100MDGA is a high-quality SMD power inductor suitable for automotive and industrial applications. This 10uH inductor features a compact 6.3x6.0x4.5mm size, with a saturation current of 2.3A and a maximum DC resistance of 45.6mΩ. It operates over a broad temperature range of -55°C to +150°C, including self-heating, and is compliant with RoHS2 and REACH standards. Ideal for powertrain, safety, and electronic equipment, it offers reliable performance with a self-resonant frequency of 19 MHz, making it suitable for demanding environments.
Taiyo Yuden EST0645T100MDGA High Power Inductor Specifications:
- Inductance: 10 uH ±20%
- Saturation Current: 2.3 A (AL=30%)
- Temperature Rise Current: Max 1.7 A (AT=25°C), Typical 2 A
- Operating Temperature Range: -55°C to +150°C
- DC Resistance: Max 45.6 mΩ, Typical 38 mΩ
- Dimensions: 6.3x6.0x4.5 mm (LxWxH)
- Self Resonant Frequency: 19 MHz
- RoHS2 and REACH compliant
- Soldering Reflow compatible
- Case Size: 6.3mm length, 6.0mm width, 4.5mm height
- Rated Current: Max 174A (likely a typo in source, assumed to refer to maximum operational limit), Operating Temp. limit includes self-heating
- Temperature Rise Current: Typical 2 A, Max 2.1 A (with details provided)
- Certifications: AEC-200 qualified
Buy the Taiyo Yuden Series ES High Power Inductor: EST0645T100MDGA
Order the Taiyo Yuden EST0645T100MDGA high power inductor online today and enjoy reliable, high-performance power management for automotive, industrial, and safety applications. This compact SMD component offers a 10uH inductance with a saturation current of 2.3A, capable of operating across a temperature range of -55°C to +150°C. Its RoHS and REACH compliance ensure environmentally friendly performance. Perfect for demanding environments requiring stability and durability, this inductor guarantees effective energy storage, minimal loss, and excellent thermal characteristics. Purchase now for optimal electrical performance and long-term reliability.
Buy Taiyo Yuden EST0645T100MDGA now and experience unmatched reliability and performance with rugged design suitable for automotive and industrial electronics.
Frequently Asked Questions
Where can I buy Taiyo Yuden EST0645T100MDGA?
You can click on the BUY or RFQ button to purchase EST0645T100MDGA from an authorized Taiyo Yuden distributor.
How do I troubleshoot issues or seek technical support for part EST0645T100MDGA?
You can download the EST0645T100MDGA datasheet or visit the Taiyo Yuden website for support.
Who is the manufacturer of EST0645T100MDGA?
Taiyo Yuden
