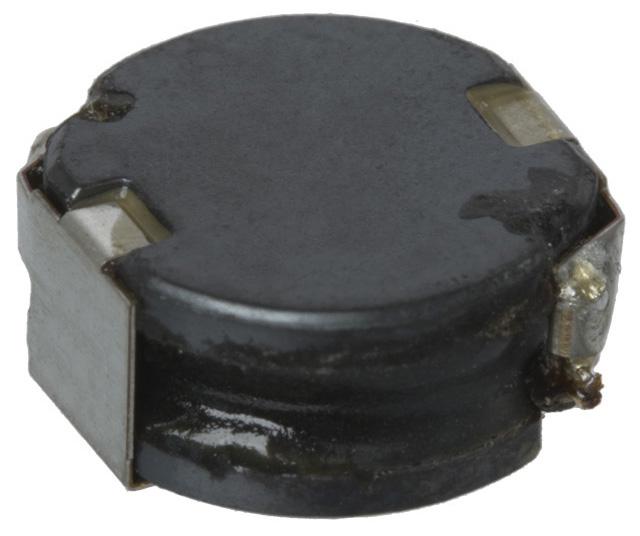

Taiyo Yuden EST0645T101MDGA Power Inductor
The EST0645T101MDGA is a high-quality SMD power inductor suitable for automotive and industrial applications, including safety-critical systems. With a 100μH inductance and a ±20% tolerance, this compact component measures 6.3x6.0x4.5mm and supports up to 0.55A of current. It is AEC-Q200 qualified, RoHS compliant, halogen-free, and designed to withstand temperatures from -55°C to +150°C. Its low DCR (approximately 0.32 to 0.38 ohms), high saturation current (up to 0.77A), and stable inductance under various conditions make it ideal for powertrain and safety systems.
Taiyo Yuden EST0645T101MDGA Power Inductor Specifications:
- Inductance: 100μH ±20%
- Dimension: 6.3x6.0x4.5mm (LxWxH)
- Rated Current: 0.55A
- Saturation Current: 0.77A (typ), 0.55A (max)
- Temperature Rise Current: 0.65A (typ), 0.56A (max)
- Self-Resonant Frequency: 4.5 MHz (minimum)
- DC Resistance: 0.32 to 0.384 ohms
- Operating Temperature Range: -55°C to +150°C
- RoHS2 and REACH Compliant
- AEC-200 Qualified
- Halogen Free
- Taping Packaging: 5000 pcs (1000 pcs*5)
- External Dimensions: 6.3±0.3mm length, 6.0±0.3mm width, 4.5±0.3mm height
Buy the Buy TAIYO YUDEN EST0645T101MDGA Part Number EST0645T101MDGA Online
Purchase the TAIYO YUDEN EST0645T101MDGA power inductor online today and benefit from its high inductance value, robust thermal stability, and reliable electrical performance. Designed for automotive and industrial safety-critical systems, it supports high current loads with minimal resistance. With AEC-Q200 qualification, RoHS compliance, and halogen-free construction, this compact inductor ensures durable operation in extreme temperatures from -55°C to +150°C. Ideal for powertrain, safety, and industrial equipment, order now for fast delivery and optimal system reliability.
Buy TAIYO YUDEN EST0645T101MDGA now and experience reliable performance in automotive safety and industrial applications.
Frequently Asked Questions
Where can I buy Taiyo Yuden EST0645T101MDGA?
You can click on the BUY or RFQ button to purchase EST0645T101MDGA from an authorized Taiyo Yuden distributor.
How do I troubleshoot issues or seek technical support for part EST0645T101MDGA?
You can download the EST0645T101MDGA datasheet or visit the Taiyo Yuden website for support.
Who is the manufacturer of EST0645T101MDGA?
Taiyo Yuden
