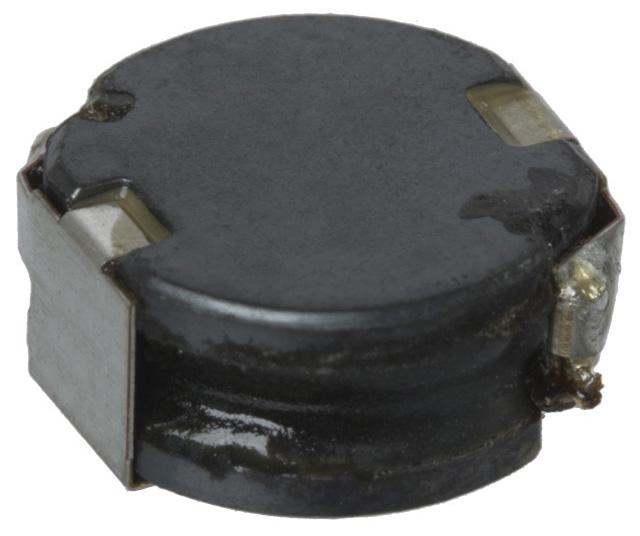

Taiyo Yuden EST0645T6R8NDGA Power Inductor
The ESTO645T6R8NDGA is a highly reliable SMD power inductor designed for automotive and industrial applications. With a 6.8μH inductance and a 30% tolerance, it supports a maximum current of 2A and features a compact 6.3x6.0x4.5mm size. This component is AEC-Q200 qualified, RoHS2 and REACH compliant, and suitable for environments with operating temperatures from -55°C to +150°C. It provides excellent stability, high saturation current of 3A, and low DC resistance, making it ideal for powertrain, safety, and industrial equipment.
Taiyo Yuden EST0645T6R8NDGA Power Inductor Specifications:
- Inductance: 6.8 μH ±30% (test frequency at 0.1 MHz)
- Dimensions: Length 6.3 ±0.3 mm, Width 6 ±0.3 mm, Height 4.5 ±0.3 mm
- Maximum DC Resistance: 37.7 mΩ, Typical: 29 mΩ
- Saturation Current: 3 A (typical), 2.5 A (max)
- Operating Temperature Range: -55°C to +150°C
- Recommended Land Pattern: Length 6.3 mm, Width 6 mm, Height 4.5 mm
- Self-Resonant Frequency: 21 MHz (reference value)
- Temperature Rise Current: Max 2.6 A at 400°C, Typical 3 A at 40°C
- RoHS2 and REACH compliant, Suitable for reflow soldering
- Type: Salted wound SMD power inductor for automotive and industrial use
Buy the Taiyo Yuden Series ES Powertrain Power Inductor: ESTO645T6R8NDGA
Purchase the Taiyo Yuden EST0645T6R8NDGA power inductor online today and ensure your automotive or industrial electronic systems operate with exceptional efficiency. Designed for demanding environments, this 6.8μH inductor supports 2A current, offers robust performance across -55°C to +150°C, and features low resistance for high efficiency. Its compact size of 6.3x6.0x4.5mm makes it easy to integrate into various power modules. Trust in the quality, compliance, and reliability of this AEC-Q200 qualified component to enhance your project’s durability and performance.
Get Taiyo Yuden EST0645T6R8NDGA today—built for automotive powertrain reliability and industrial durability.
Frequently Asked Questions
Where can I buy Taiyo Yuden EST0645T6R8NDGA?
You can click on the BUY or RFQ button to purchase EST0645T6R8NDGA from an authorized Taiyo Yuden distributor.
How do I troubleshoot issues or seek technical support for part EST0645T6R8NDGA?
You can download the EST0645T6R8NDGA datasheet or visit the Taiyo Yuden website for support.
Who is the manufacturer of EST0645T6R8NDGA?
Taiyo Yuden
