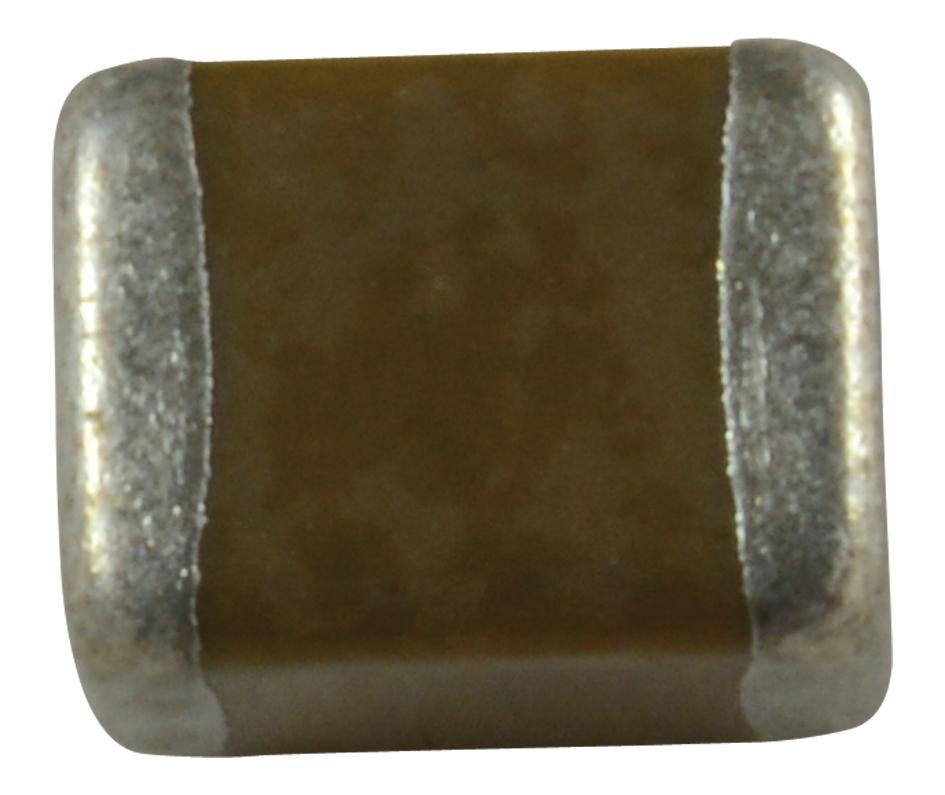

Taiyo Yuden HMK105CG150JVF Ceramic Capacitor
The HMK105CG150JV-F is a high-reliability multilayer ceramic capacitor designed for precise electronic circuits requiring stability across temperature ranges. Featuring 15pF ± 5% capacitance rating, it complies with RoHS2 and REACH standards, ensuring environmentally friendly usage. Its compact 0402/1005 case size makes it suitable for densely populated circuit boards. Rated for 100V, it exhibits minimal dielectric absorption and excellent high-temperature performance, with a temperature coefficient of 0±30 ppm/°C. Perfect for applications demanding high insulation resistance and stability in various electronic devices.
Taiyo Yuden HMK105CG150JVF Ceramic Capacitor Specifications:
- Capacitance: 15 pF, ±5%
- Voltage Rating: 100V
- Case Size: 0402/1005, 0.5 ±0.05 mm x 1.0 ±0.05 mm
- Rated Voltage: 100V
- Insulation Resistance: ≥10^6 Ω
- Temperature Range: -55°C to +125°C (EIA/JIS)
- Temperature Coefficient: 0 ±30 ppm/°C
- Q Factor: ≥700 at 1MHz
- RoHS2 and REACH compliant
- Halogen Free
- Soldering: Reflow capable
- Tolerance: ±5%
- Dimensions: Length 1.0 mm, Width 0.5 mm
- Environmental Standards: RoHS2, REACH
- Operating Temp: -55°C to +125°C
- High Temperature Load: 200% rated voltage
Buy the Taiyo Yuden HMK105CG150JV – Reliable Ceramic Capacitor for Industrial Applications
Order the Taiyo Yuden HMK105CG150JV ceramic capacitor online today and ensure your electronic projects benefit from high stability, excellent insulation resistance, and environmental safety standards. Its compact size and reliable performance at 100V make it perfect for dense circuit applications in industrial, consumer, and medical electronics. With RoHS2 and REACH compliance, this capacitor offers eco-friendly features and long-lasting durability. Purchase now to enhance your electronic designs with dependable, high-quality ceramic components designed for demanding engineering environments.
Get Taiyo Yuden HMK105CG150JV today—built for precision, durability, and compact high-performance circuits.
Frequently Asked Questions
Where can I buy Taiyo Yuden HMK105CG150JVF?
You can click on the BUY or RFQ button to purchase HMK105CG150JVF from an authorized Taiyo Yuden distributor.
How do I troubleshoot issues or seek technical support for part HMK105CG150JVF?
You can download the HMK105CG150JVF datasheet or visit the Taiyo Yuden website for support.
Who is the manufacturer of HMK105CG150JVF?
Taiyo Yuden
