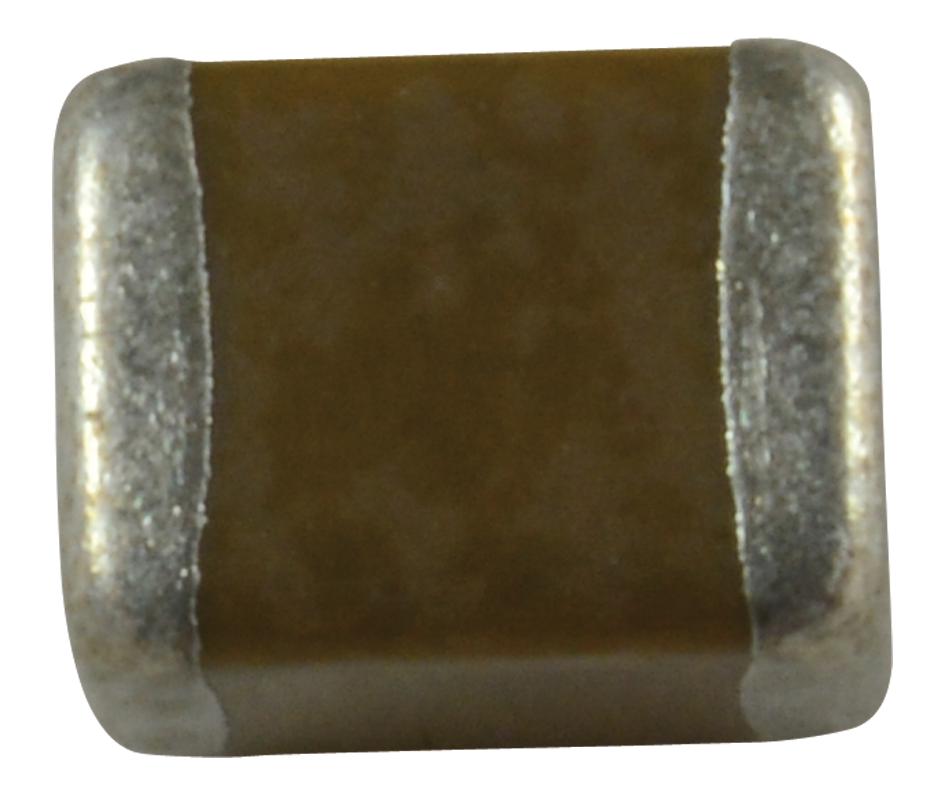

Taiyo Yuden JMK063ABJ105MPF Multilayer Ceramic Capacitor
The high dielectric multilayer ceramic capacitor features a capacitance of 1uF with a tolerance of +20%, rated at 63V, and is designed in compact 0201 / 0603 size for surface-mount applications. It has a temperature characteristic of X5R, operating within -55°C to +85°C, and offers high reliability with an insulation resistance of at least 100 MΩ. This RoHS2 and REACH compliant capacitor is halogen-free, suitable for reflow soldering, and ideal for electronic circuitry demanding stable performance and miniaturization in diverse electronic devices.
Taiyo Yuden JMK063ABJ105MPF Multilayer Ceramic Capacitor Specifications:
- Capacitance: 1 uF + 20%
- Rated Voltage: 63V
- Temperature Characteristic: X5R
- Operating Temp. Range: -55°C to +85°C
- Dimensions: L 0.6 mm, Case Size 0201/0603 (0.3 mm)
- Insulation Resistance (min): 100 MΩ
- RoHS2 & REACH compliant
- Halogen Free: Yes
- Soldering: Reflow compatible
- High Temperature Loading: 150%
- Tan δ (max): 10%
- External Dimensions: Length 0.6 mm, Width 0.3 mm, Thickness 0.35 mm
- Environmental: Reliable in various operating conditions, withstanding mechanical and thermal stress.
Buy the Taiyo Yuden Series X5R Ceramic Capacitor: JMK063ABJ105MPF
Purchase the Taiyo Yuden JMK063ABJ105MPF multilayer ceramic capacitor online today and experience reliable performance in your electronic projects. This high dielectric surface-mount capacitor features a capacitance of 1uF with a tolerance of +20%, rated at 63V, and is compact and RoHS compliant. Its robust design ensures stability across temperatures from -55°C to +85°C, making it ideal for high-density circuit boards, consumer electronics, and industrial equipment. Reflow soldering capability and high insulation resistance guarantee durability and consistent operation in demanding environments.
Get Taiyo Yuden JMK063ABJ105MPF today—built for precision and long-lasting durability in compact electronic circuits.
