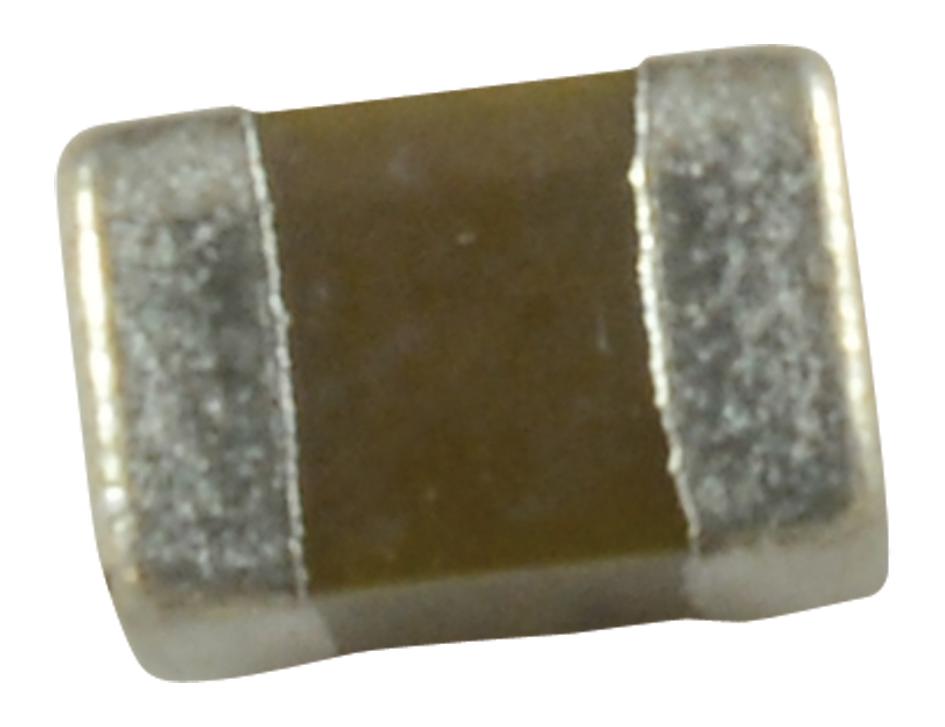

Taiyo Yuden JMK212AB7106KGT Multilayer Ceramic Capacitor
The TAIYO YUDEN JMK212AB7106KG-T is a high-quality multilayer ceramic capacitor designed for a wide range of electronic applications. With a capacitance of 10uF and a rated voltage of 6.3V, this capacitor offers reliable performance in various circuits. Its X7R temperature characteristic ensures stability over a wide temperature range (-55°C to +125°C), while the compact 0805/2012 size makes it ideal for space-constrained designs. The capacitor is RoHS compliant and suitable for use in general electronic equipment, including AV equipment, OA equipment, and information communication equipment. It is manufactured by TAIYO YUDEN, a trusted name in electronic components.
Taiyo Yuden JMK212AB7106KGT Multilayer Ceramic Capacitor Specifications:
- Capacitance: 10 uF ± 10 %
- Case Size (EIA/JIS): 0805/2012
- Rated Voltage: 6.3 V
- tanδ (max): 10 %
- Temperature Characteristic (EIA): X7R
- Operating Temp. Range (EIA): -55 to +125 ℃
- High Temperature Loading: 150 %
- Insulation Resistance (min): 100 MΩ·μF
- RoHS Compliance: Yes
- REACH Compliance: Yes
- Halogen Free: Yes
- Soldering: Reflow
- Dimension L: 2.0 +0.15/-0.05 mm
- Dimension W: 1.25 +0.15/-0.05 mm
- Dimension T: 1.25 +0.15/-0.05 mm
- Dimension e: 0.50 ±0.25 mm
Buy the JMK212AB7106KG-T TAIYO YUDEN Multilayer Ceramic Capacitor | myMectronic
Purchase the TAIYO YUDEN JMK212AB7106KG-T online for a secure and reliable supply chain.
Buy Now
Frequently Asked Questions
Where can I buy Taiyo Yuden JMK212AB7106KGT?
You can click on the BUY or RFQ button to purchase JMK212AB7106KGT from an authorized Taiyo Yuden distributor.
How do I troubleshoot issues or seek technical support for part JMK212AB7106KGT?
You can download the JMK212AB7106KGT datasheet or visit the Taiyo Yuden website for support.
Who is the manufacturer of JMK212AB7106KGT?
Taiyo Yuden
