Taiyo Yuden JMK325B7476MMTR High-Frequency Ceramic Capacitor
High-frequency multilayer ceramic capacitor designed for compact electronic circuits, offering excellent noise suppression, high Q-value and small case size. Suitable for wireless, communication devices, VCO, TCXO, and time constant circuits due to superior ESR, low distortion, and high reliability. The capacitor features nickel electrodes for enhanced heat and soldering resistance, ensuring performance stability in high-density mounting applications for modern electronic equipment.
Taiyo Yuden JMK325B7476MMTR High-Frequency Ceramic Capacitor Specifications:
- Rated Voltage: 16V or 25V, based on series
- Capacitance Range: from 2.2 pF to 22000 pF (22 nF)
- Case Size: 0402, 0603, 0805, 1206, 1210, 1225, 2010, 2110, 2220, 3320, 4700, 6800, 10000, 22000 pF
- Temperature Range: -55°C to +125°C
- Temperature Characteristics: X7R, X5R, X6S, F, Y5V (varies by series)
- Capacitance Tolerance: ±10%, ±5%, +20%, -55~+125°C (depending on type)
- Impedance ESR: varies with frequency; typical values are < 100 mΩ at 1 GHz
- Insulation Resistance: ≥ 10000 MΩ at rated voltage after 1 min
- Dissipation Factor: ≤ 0.1% to 7%, depending on series and capacitance
- Packaging: Taped for automatic assembly, standard reels, 4000–15000 pcs per reel
- Soldering Conditions: Compatible with reflow and wave soldering; preheating and controlled peak temperature recommended
- Construction: Monolithic, nickel electrodes with high reliability and heat resistance

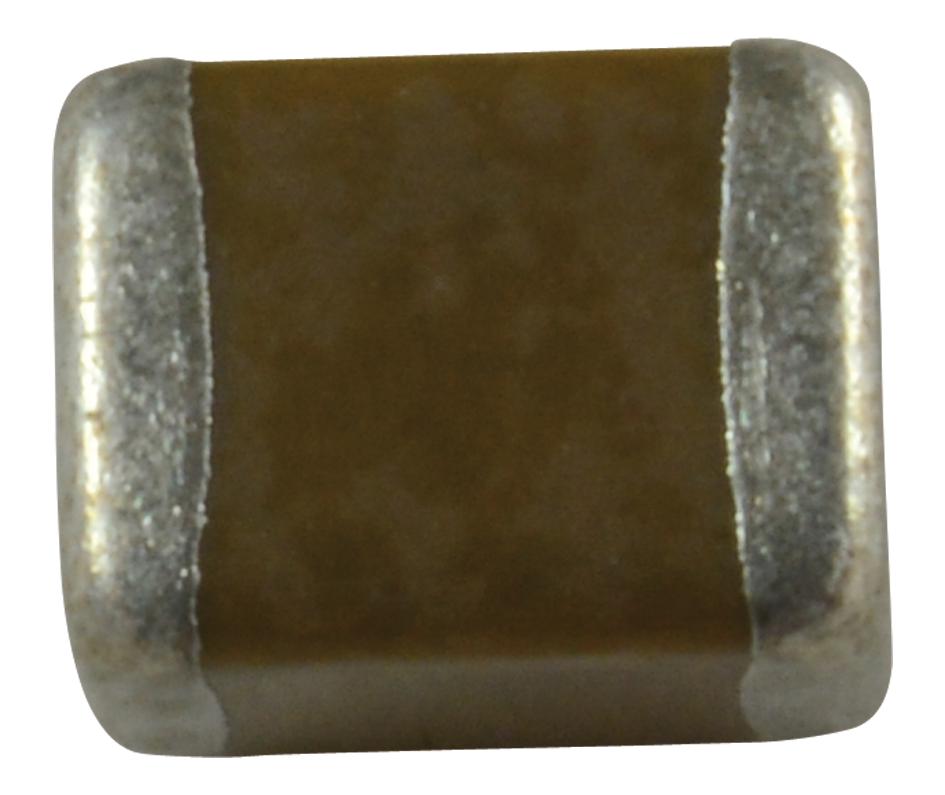

Buy the Buy TAIYO YUDEN High-Frequency Ceramic Capacitor Part Number JMK325B7476MM Online
Order TAIYO YUDEN high-frequency ceramic capacitor JMK325B7476MM online now. Designed for compact, high-reliability circuits in wireless, communication, and VCO applications. The capacitor features nickel electrodes for enhanced heat and soldering resistance, excellent noise filtering, and low ESR at high frequencies. With a wide capacitance range from 2.2 pF to 22,000 pF, it ensures stable performance in modern electronics. Fast delivery, secure packing, and guaranteed quality—perfect for your high-frequency circuit needs.
Get TAIYO YUDEN JMK325B7476MM today—built for high-frequency applications with low ESR and excellent noise suppression.
Frequently Asked Questions
Where can I buy Taiyo Yuden JMK325B7476MMTR?
You can click on the BUY or RFQ button to purchase JMK325B7476MMTR from an authorized Taiyo Yuden distributor.
How do I troubleshoot issues or seek technical support for part JMK325B7476MMTR?
You can download the JMK325B7476MMTR datasheet or visit the Taiyo Yuden website for support.
Who is the manufacturer of JMK325B7476MMTR?
Taiyo Yuden
