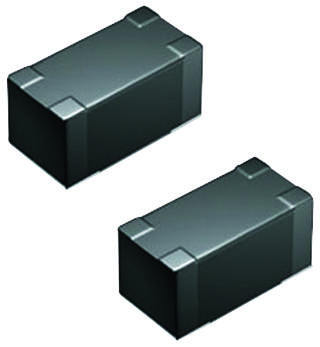

Taiyo Yuden LBR2012T100K Wire-wound Chip Inductor
The Taiyo Yuden LBR2012T100K is a wire-wound chip inductor designed for a wide range of electronic applications. Its compact size (0805/2012) and robust construction make it suitable for both commercial and industrial use. The inductor offers a 10uH inductance with a ±10% tolerance, a rated current of 0.15A, and a DC resistance of 0.36 - 0.468 ohms. It is RoHS compliant and halogen-free, ensuring environmental responsibility. Typical applications include power management, signal filtering, and impedance matching in various electronic devices.
Taiyo Yuden LBR2012T100K Wire-wound Chip Inductor Specifications:
- Inductance: 10 uH ± 10 %
- Case Size (EIA/JIS): 0805/2012
- Rated Current (max): 0.15 A
- DC Resistance (max): 0.468 Ω
- DC Resistance (typ): 0.36 Ω
- LQ Measuring Frequency: 2.52 MHz
- Self Resonant Frequency (min): 32 MHz
- Operating Temp. Range: -40 to +105 ℃
- Temperature characteristic: ± 20 % (Inductance change)
- RoHS Compliance: Yes
- REACH Compliance: Yes
- Halogen Free: Yes
- Soldering: Reflow
- Dimension L: 2.0 ±0.2 mm
- Dimension W: 1.25 ±0.2 mm
- Dimension T: 1.25 ±0.2 mm
- Dimension e: 0.5 ±0.2 mm
Buy the LBR2012T100K TAIYO YUDEN Wire-wound Chip Inductor | myMectronic
Purchase the LBR2012T100K Wire-wound Chip Inductor securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Taiyo Yuden LBR2012T100K?
You can click on the BUY or RFQ button to purchase LBR2012T100K from an authorized Taiyo Yuden distributor.
How do I troubleshoot issues or seek technical support for part LBR2012T100K?
You can download the LBR2012T100K datasheet or visit the Taiyo Yuden website for support.
Who is the manufacturer of LBR2012T100K?
Taiyo Yuden
