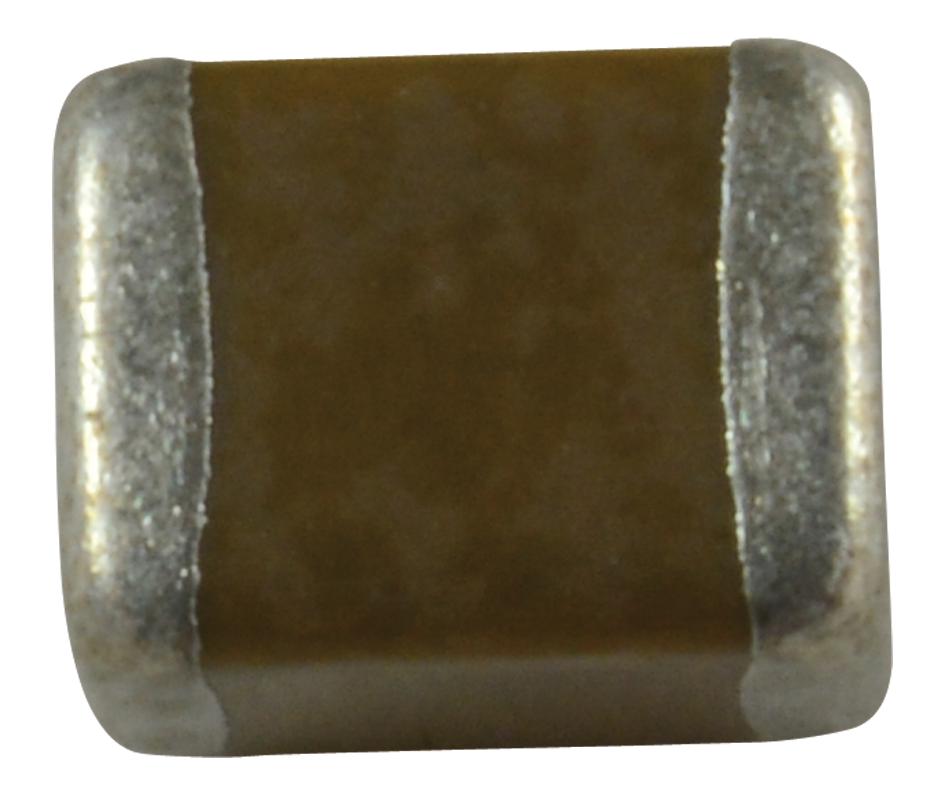

Taiyo Yuden LMK105BJ224KVHF Ceramic Capacitor
High dielectric multilayer ceramic capacitor suitable for automotive and industrial applications. Featuring a capacitance of 0.22uF ±10%, rated voltage of 10V, and X5R temperature characteristic, it offers excellent stability, insulation resistance of at least 100 MΩ-µF, and RoHS2 and REACH compliance. Encased in a compact 0402/1005 size with dimensions around 0.5 mm thick, it withstands operating temperatures from -55°C to +85°C and handles high temperature loading up to 150% rated voltage. Halogen-free and compatible with reflow soldering, ideal for compact electronic device design.
Taiyo Yuden LMK105BJ224KVHF Ceramic Capacitor Specifications:
- Capacitance: 0.22 uF ±10%
- Rated Voltage: 10V
- Temperature Characteristic: X5R
- Size: 0402 / 1005 (EIA/JIS), approximately 0.5 mm thick
- Dimensions: L 1.0 mm ±0.05 mm
- Operating Temperature Range: -55°C to +85°C
- High Temperature Loading: 150% of rated voltage
- Insulation Resistance: minimum 100 MΩ-µF
- RoHS2 and REACH compliant
- Halogen Free: Yes
- Soldering: Compatible with reflow process
Buy the Taiyo Yuden Series High Dielectric Ceramic Capacitor: LMK105BJ224KVHF
Purchase the Taiyo Yuden Series Ceramic Capacitor LMK105BJ224KVHF online today for your automotive and industrial electronic needs. This compact 0.22uF, 10V, X5R capacitor ensures stability, high insulation resistance, and compliance with RoHS2 and REACH standards. Its size of 0402/1005 makes it ideal for space-constrained designs, providing reliable performance across -55°C to +85°C. Suitable for reflow soldering, it guarantees durability in demanding environments, making it an essential component for modern electronic devices requiring high reliability and safety.
Order your Taiyo Yuden Series High Dielectric Ceramic Capacitor LMK105BJ224KVHF today and enhance your electronic projects with dependable, high-performance components.
Frequently Asked Questions
Where can I buy Taiyo Yuden LMK105BJ224KVHF?
You can click on the BUY or RFQ button to purchase LMK105BJ224KVHF from an authorized Taiyo Yuden distributor.
How do I troubleshoot issues or seek technical support for part LMK105BJ224KVHF?
You can download the LMK105BJ224KVHF datasheet or visit the Taiyo Yuden website for support.
Who is the manufacturer of LMK105BJ224KVHF?
Taiyo Yuden
