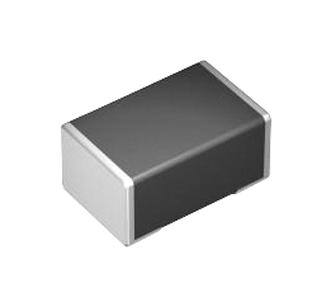

Taiyo Yuden MCFE1608TR24MG Power Inductor
This metal multilayer chip power inductor offers 0.24uH with a 20% tolerance, suitable for high-current applications up to 15A. Designed in a compact 0603/1608 case size, it features a maximum DC resistance of 75mΩ and can operate reliably between -40°C and +125°C. The inductor exhibits excellent thermal stability with a Temperature Rise Current of 17A and saturation currents of 268mA (max) and 318mA (typ). It complies with RoHS2, REACH, and halogen-free standards, making it ideal for electronic circuits requiring compact, high-current inductors.
Taiyo Yuden MCFE1608TR24MG Power Inductor Specifications:
- Inductance: 0.24 uH + 20%
- Case Size (EIA/JIS): 0603/1608
- Rated Current (max): 15A
- Saturation Current (max): 268mA
- Saturation Current (typ): 318mA
- Temperature Rise Current (max): 17A
- DC Resistance (max): 75mΩ
- DC Resistance (typ): 75mΩ
- Operating Temperature Range: -40°C to +125°C
- LQ Measuring Frequency: 1 MHz
- RoHS2 Compliance: Yes
- REACH Compliance: Yes
- Halogen Free: Yes
- Soldering Reflow: Yes
Buy the Taiyo Yuden MCFE1608TR24MG – Reliable Power Inductor for Industrial Applications
Purchase the Taiyo Yuden MCFE1608TR24MG power inductor online today and ensure your electronic circuits are equipped with a high-quality, high-current component. This 0.24uH inductor in a compact 0603/1608 case provides excellent thermal stability, low resistance, and reliable performance up to 15A current. Perfect for high-current applications in electronic devices, it also meets RoHS2, REACH, and halogen-free standards. Buy now to enhance your project’s efficiency with a trusted power inductor designed for demanding environments.
Order your Taiyo Yuden MCFE1608TR24MG power inductor today and benefit from its high current capacity and compact design for your electronic projects.
Frequently Asked Questions
Where can I buy Taiyo Yuden MCFE1608TR24MG?
You can click on the BUY or RFQ button to purchase MCFE1608TR24MG from an authorized Taiyo Yuden distributor.
How do I troubleshoot issues or seek technical support for part MCFE1608TR24MG?
You can download the MCFE1608TR24MG datasheet or visit the Taiyo Yuden website for support.
Who is the manufacturer of MCFE1608TR24MG?
Taiyo Yuden
