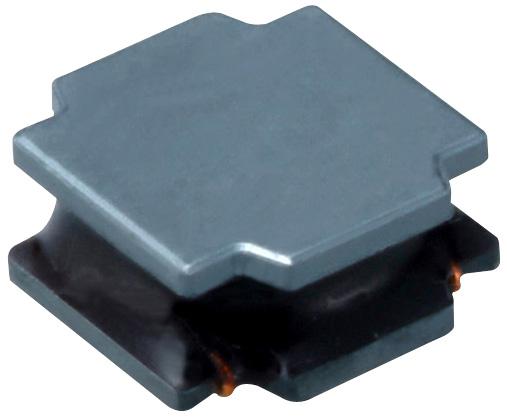

Taiyo Yuden NR5040T470M Power Inductor
The TAIYO YUDEN NR5040T470M is a high-performance SMD power inductor ideal for use in various electronic devices, including power supplies, DC-DC converters, and filtering circuits. Its compact form factor and robust construction ensure reliable operation in demanding environments. The inductor is designed for mass production and is compliant with RoHS standards, making it an environmentally responsible choice for modern electronics. It exhibits a rated current of 0.9A and a saturation current of 1.1A, providing efficient power management for a variety of applications.
Taiyo Yuden NR5040T470M Power Inductor Specifications:
- Inductance: 47 uH ± 20 %
- Case Size (mm): 4.9x4.9
- Rated Current (max): 0.9 A
- Saturation Current (max): 1.1 A (⊿L=30%)
- Temperature Rise Current (max): 0.9 A (⊿T=40℃)
- DC Resistance (max): 0.403 Ω
- DC Resistance (typ): 0.31 Ω
- LQ Measuring Frequency: 100 kHz
- Self Resonant Frequency (min): 6 MHz
- Operating Temp. Range: -25 to +120 ℃
- Temperature characteristic: ± 20 %
- RoHS Compliance: Yes
- REACH Compliance: Yes
- Halogen Free: Yes
- Soldering: Reflow
- Dimension L: 4.9 ±0.2 mm
- Dimension W: 4.9 ±0.2 mm
- Dimension H: Max 4.0 mm
- Dimension e: 1.2 ±0.2 mm
- Dimension f: 3.3 ±0.2 mm
- Dimension ΔI: Typ 1.3 mm
