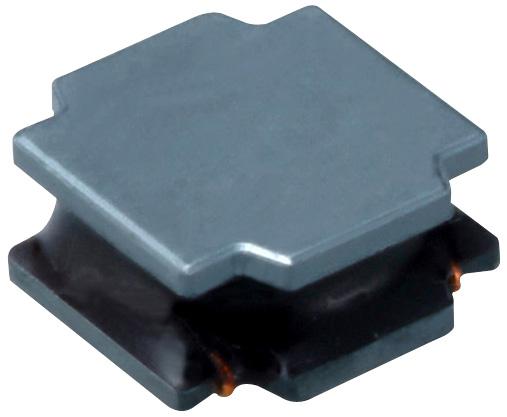

Taiyo Yuden NR5040T4R7N Power Inductor
The TAIYO YUDEN NR5040T4R7N is a high-performance SMD power inductor designed for use in various electronic devices. Its compact form factor and robust construction make it suitable for space-constrained applications while providing excellent electrical characteristics. The inductor is characterized by its 4.7uH inductance, a rated current of 3.1A, and a saturation current of 3.3A. It is widely used in DC-DC converters, power supplies, and filtering circuits within consumer electronics, automotive systems, and industrial equipment. TAIYO YUDEN emphasizes thorough validation and verification of their products in real-world conditions before implementation.
Taiyo Yuden NR5040T4R7N Power Inductor Specifications:
- Inductance: 4.7 uH ± 30 %
- Case Size (mm): 4.9x4.9
- Rated Current (max): 3.1 A
- Saturation Current (max): 3.3 A (⊿L=30%)
- Temperature Rise Current (max): 3.1 A (⊿T=40℃)
- DC Resistance (max): 37.7 mΩ
- DC Resistance (typ): 29 mΩ
- LQ Measuring Frequency: 100 kHz
- Self Resonant Frequency (min): 28 MHz
- Operating Temp. Range: -25 to +120 ℃
- Temperature characteristic: ± 20 %
- RoHS Compliance: Yes
- REACH Compliance: Yes
- Halogen Free: Yes
- Soldering: Reflow
- Dimension L: 4.9 ±0.2 mm
- Dimension W: 4.9 ±0.2 mm
- Dimension H: Max 4.1 mm
- Dimension e: 1.2 ±0.2 mm
- Dimension f: 3.3 ±0.2 mm
- Dimension ΔI: Typ 1.3 mm
