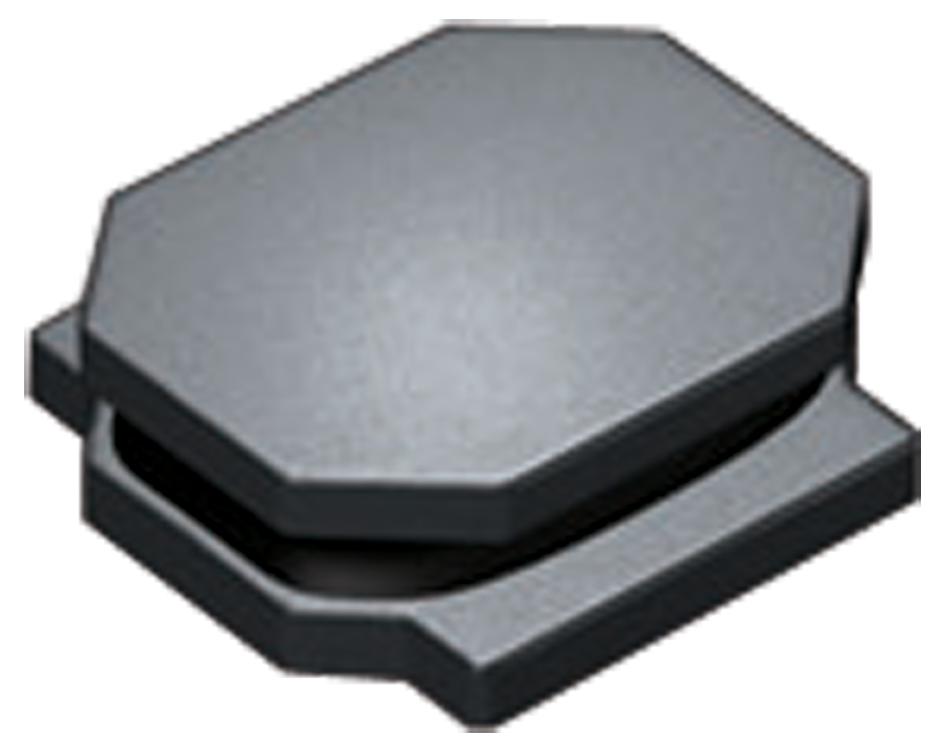

Taiyo Yuden NRS4018T100MDGJV Power Inductor
The SMD power inductor series designed for industrial and automotive applications offers reliable performance with a 10 uH inductance, high saturation current of 1300mA, and RoHS compliance. Built with a compact 4mm x 4mm case, these inductors are suitable for comfort and safety systems in harsh environments, operating effectively between -40°C and 125°C. They feature a self-resonant frequency of 25MHz, reflow soldering capability, halogen-free materials, and are qualified under AEC-Q200 standards, ensuring durability and safety in critical electronic applications.
Taiyo Yuden NRS4018T100MDGJV Power Inductor Specifications:
- Inductance: 10uH (+20%)
- Case Size: 4mm x 4mm (EIA/JIS)
- Inductance Measuring Frequency: 100kHz
- Rated Current: 1300mA
- Saturation Current: 1300mA
- Temperature Range: -40°C to 125°C
- DC Resistance: 0.182Ω (max), 0.152Ω (typical)
- Self-resonant Frequency: 25MHz
- Material: Halogen-free, RoHS compliant
- Soldering Method: Reflow
- External Dimensions: Length 4mm ±0.2mm, height 1.8mm max
- Standard Packaging: Taping for automated assembly with 3500 pieces
- Certification: AEC-Q200 qualified
Buy the Taiyo Yuden Series NR Power Inductor: NRS4018T100MDGJV
Discover the high-quality power inductor designed for demanding industrial and automotive applications. Featuring 10uH inductance, 1300mA saturation current, RoHS compliance, and a compact 4mm size, this component ensures durability in harsh environments. Suitable for comfort and safety systems, it operates from -40°C to 125°C with a self-resonant frequency of 25MHz. Reflow solderable and halogen-free, it meets AEC-Q200 standards and is available in standard tape packaging for efficient assembly. Upgrade your electronic designs with confidence today.
Get Taiyo Yuden NRS4018T100MDGJV today—built for high reliability and automotive safety performance.
Frequently Asked Questions
Where can I buy Taiyo Yuden NRS4018T100MDGJV?
You can click on the BUY or RFQ button to purchase NRS4018T100MDGJV from an authorized Taiyo Yuden distributor.
How do I troubleshoot issues or seek technical support for part NRS4018T100MDGJV?
You can download the NRS4018T100MDGJV datasheet or visit the Taiyo Yuden website for support.
Who is the manufacturer of NRS4018T100MDGJV?
Taiyo Yuden
