TRIPP-LITE PV3000HF Datasheet & Stock

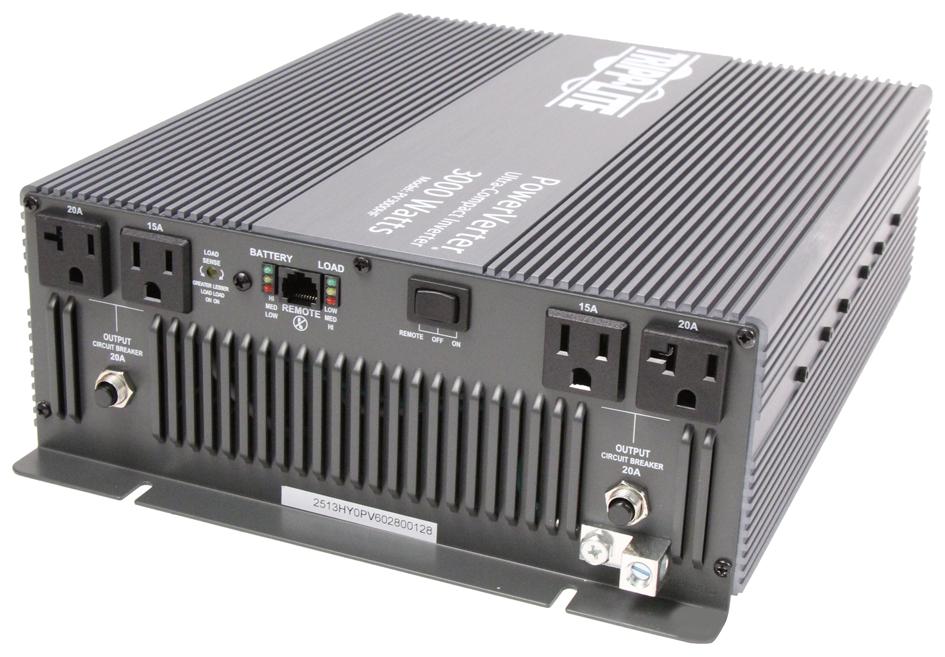

The PV3000HF is a 4-output PowerVerter Compact Inverter for trucks converts DC power into 3000W of continuous 120VAC power. Utilize your vehicle's battery to efficiently power office equipment on the road or power tools at a work site. Compact, lightweight metal case design is among the smallest, most rugged inverters available at this power level. Heavy-duty DC input terminals assure solid connection to battery. Dual connections provide high wattage to support heavy equipment loads. Remote control LED/switch module controls and monitors your inverter from virtually anywhere within your vehicle with use of extra-long cable. Battery charge level LEDs indicate the approximate charge level (high/medium/low) of connected batteries. Connected load level LEDs indicates the approximate wattage load level (high/medium/low) of connected equipment. Battery conservation charge dial conserves battery power by setting the low-load level at which the inverter automatically shuts off.




Includes "Battery Saver" low voltage alarm/shutdown

Straight forward, uncomplicated installation

Quiet electricity for TVs, DVD players, microwaves, tools, coffeemakers and game systems

Operating mode switch controls inverter operation

Sturdy extruded aluminum case stands up to the toughest work environments

Cooling fan provides cooler operation and lengthens inverter service life

Circuit breakers guard the inverter against potentially damaging equipment overload

Mounting flanges provide safe, fixed installation

Grooved cooling surface provides additional surface area for more efficient cooling

Grounding lug connects to vehicle ground





Allows multiple mounting options, including behind or below a dashboard or compartment

Features daisy-chain capability





Applications


Power Management,

Automotive,

Microwave,

Consumer Electronics






Contents

PV3000HF Inverter, Remote control LED/switch module (APSRM4), 25ft Cable and Instruction manual.



Footnotes
To protect against high current draw that may occur during inverter failure, two fuse links rated at 250a each should be positioned no more than 18" from the PV3000HF's battery in each positive line.
