TRIPP-LITE SM1500RMXL2UTAA Datasheet & Stock

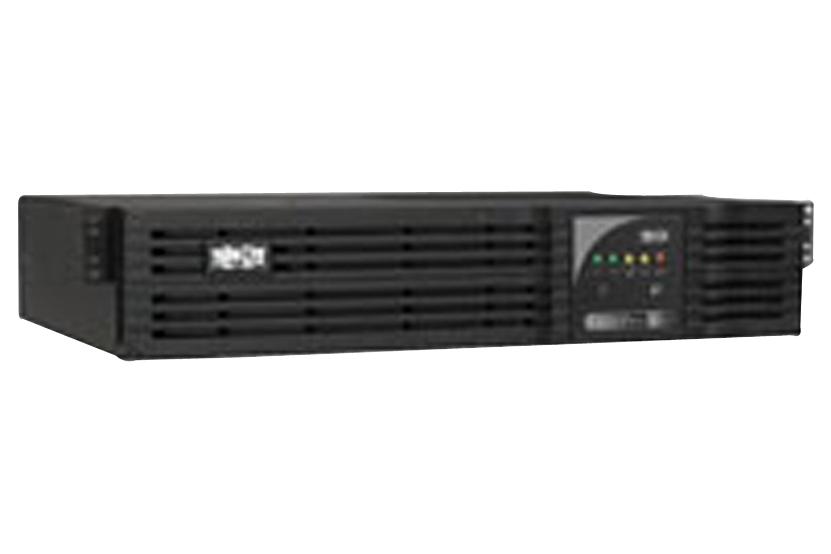

The SM1500RMXL2UTAA is a 8-outlet 1kW line interactive sine wave Uninterruptible Power Supply (UPS) provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up servers and network storage devices, the SM1500RMXL2UTAA switches to 1.5kVA/1.35kW battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss. Four of the eight NEMA 5-15R outlets may be switched off remotely to reboot equipment or shed nonessential loads to maximize battery backup time for mission-critical equipment. The internal battery provides 14 minutes of support at half load (675W) and 4.9 minutes at full load(1.35kW). Adding optional external battery packs, such as Tripp Lite’s BP36V15-2U, provides extended runtime.




Corrects under- and overvoltages from 83 to 145V

8 NEMA 5-15R outlets-4 switchable via network interface

Network power management and control capability

Expandable runtime with optional external battery packs

14 Minutes runtime at half load, 4.9 minutes at full load

Protects mission-critical rack-mounted equipment

Audible alarm signals loss of utility power, overload, low battery and more

10ft Power cord with 120V NEMA 5-15P input

Reliable battery backup with expandable runtime

Internal batteries designed for hot-swap field replacement





Expandable runtime with optional external battery packs, such as Tripp Lite’s BP36V15-2U

95% Line-power efficiency rating saves money in energy costs

Automatic voltage regulation(AVR)

Maintains 120V nominal output over input range of 83 to 145V without using battery power

EMI/RFI line noise filtering

Interactive LCD screen

Front-panel LCD monitors power status, operating data, voltage, alarm and other options

Rotates for easy viewing in rack-mount or tower configurations

SNMP/web capability

EPO port supports emergency shutdown in large facilities





Applications


Power Management






Contents

SM1500RMXL2UTAA SmartPro 120V 1.5kVA 1.35kW line-interactive sine wave UPS, USB cable, DB9 cable, EPO cable, PowerAlert software, Mounting hardware, Owner’s manual.
