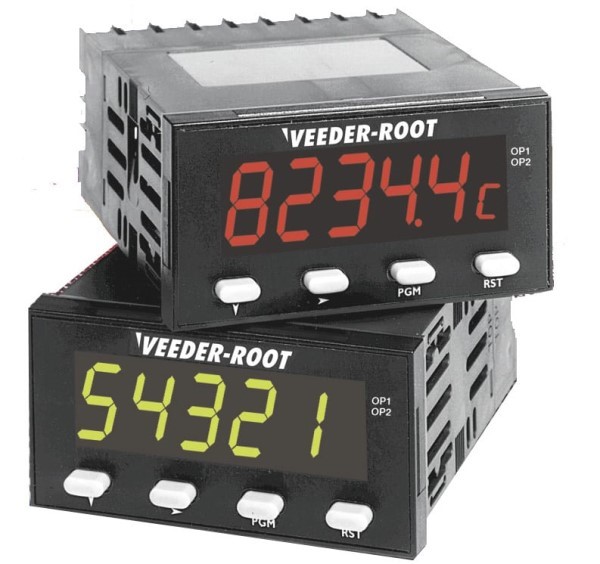

Veeder Root C62870002 Preset and Batch Counter
The Veeder Root C628 Preset & Batch Counter is a versatile 1/8 DIN instrument designed for monitoring and controlling various industrial processes. Featuring a large, high-brightness LED display with programmable color change capabilities, the C628 provides operators with instant visual alerts to changes in critical values like count, position, or length. Available in single, dual preset, and batch models, the C628 offers flexible configuration options for diverse applications. Batch units display both the current count and the background total, enhancing process visibility. With features like programmable help functions, dual preset tracking, and optional RS-485 communication, the C628 provides a comprehensive solution for industrial counting and control.
Veeder Root C62870002 Preset and Batch Counter Specifications:
- Display Height: 0.71" (18mm)
- Secondary Display Height: 0.3" (7mm)
- Display Type: 7 segment LED
- Digit Height: 0.71"
- Count Input Frequency: 10 kHz max.
- Logic Low Voltage: ≤ 2.0 VDC
- Logic High Voltage: ≥ 3.0 VDC
- Control Input Impedance: 4.7 K Ω
- Multiplier Calibration Range: 0.0001 to 9.9999
- Output Type (Solid State): NPN open collector
- Output Voltage (Solid State): 30 VDC max.
- Output Current (Solid State): 100 mA max.
- Output Type (Relay): SPDT
- Relay Voltage/Current: 2 amp resistive @ 110 VAC
- Relay Latency: 75 seconds + 8 ms
- Communication Protocol: Serial asynchronous, UART to UART, Open ASCII
- Baud Rate: 9600, 4800, 2400, or 1200
- Filter Speed: Settable for 20, 200 or 10,000 Hz
- Supply Voltage: 90-264 VAC, 50/60 Hz or 20-50 VAC/VDC
- Accessory Power Supply: 9-15 (unregulated VDC), 125 mA max.
- Dimensions: 48mm x 96mm, 110mm deep
- Panel Cutout: 45mm x 92mm
- Mounting: Panel mount
- Connections: Screw type terminals
- Front Panel Rating: NEMA 4X/IEC IP65
- Case Material: GE Lexan 940
- Weight: 0.56 lbs.
- Operating Temperature: 0° to 55° Celsius
- Storage Temperature: -20° to 80° Celsius
- Relative Humidity: 20% to 95% non-condensing
- Approvals: CE; UL, CUL recognized
Buy the C628-70002 Veeder Root Preset and Batch Counter | myMectronic
Purchase the Veeder Root C628-70002 Preset & Batch Counter securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy Veeder Root C62870002?
You can click on the BUY or RFQ button to purchase C62870002 from an authorized Veeder Root distributor.
How do I troubleshoot issues or seek technical support for part C62870002?
You can download the C62870002 datasheet or visit the Veeder Root website for support.
Who is the manufacturer of C62870002?
Veeder Root
