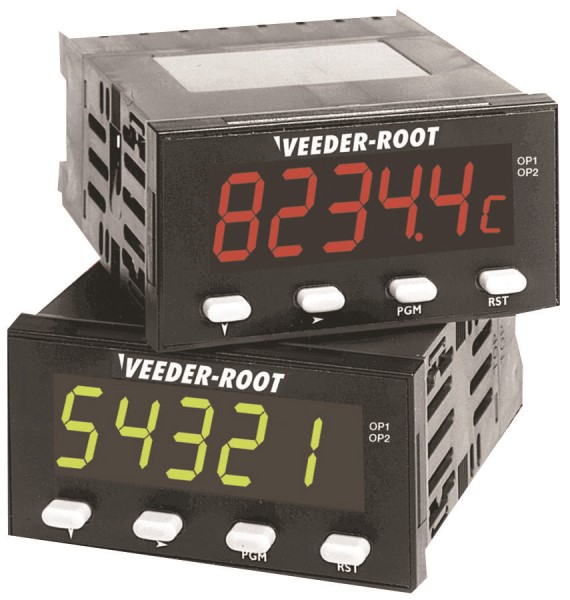

Veeder Root C62880000 Preset and Batch Counter
The Veeder Root C628 Preset & Batch Counter is a versatile 1/8 DIN instrument designed for monitoring and controlling critical values in industrial applications. Featuring a large, color-change LED display, the C628 provides instant visual alerts to changes in process status. Available in single, dual preset, and batch configurations, it offers programmable latched or timed output operation, independent display of background totals, and a choice of input types. The C628 is suitable for a wide range of applications including counting, positioning, and length measurement.
Veeder Root C62880000 Preset and Batch Counter Specifications:
- Display Height: 0.71” (18mm)
- Display Type: 7 segment LED
- Frequency: 10 kHz max.
- Logic Low Voltage: ≤ 2.0 VDC
- Logic High Voltage: ≥ 3.0 VDC
- Control Input Impedance: 4.7 K Ω
- Multiplier: 0.0001 to 9.9999
- Output Type: NPN open collector, SPDT relay
- Output Current: 100 mA max.
- Relay Rating: 2 amp resistive @ 110 VAC
- Communication: Serial asynchronous, UART to UART, Open ASCII
- Baud Rate: 9600, 4800, 2400, or 1200
- Filter Speed: 20, 200 or 10,000 Hz
- Supply Voltage: 90-264 VAC, 50/60 Hz or 20-50 VAC/VDC
- Power Consumption: 4 Watts
- Dimensions: 48mm x 96mm, 110mm deep
- Mounting: Panel mount
- Cutout: 45mm x 92mm
- Operating Temperature: 0° to 55° Celsius
- Storage Temperature: -20° to 80° Celsius
- Humidity: 20% to 95% non-condensing
- Approvals: CE; UL, CUL recognized
