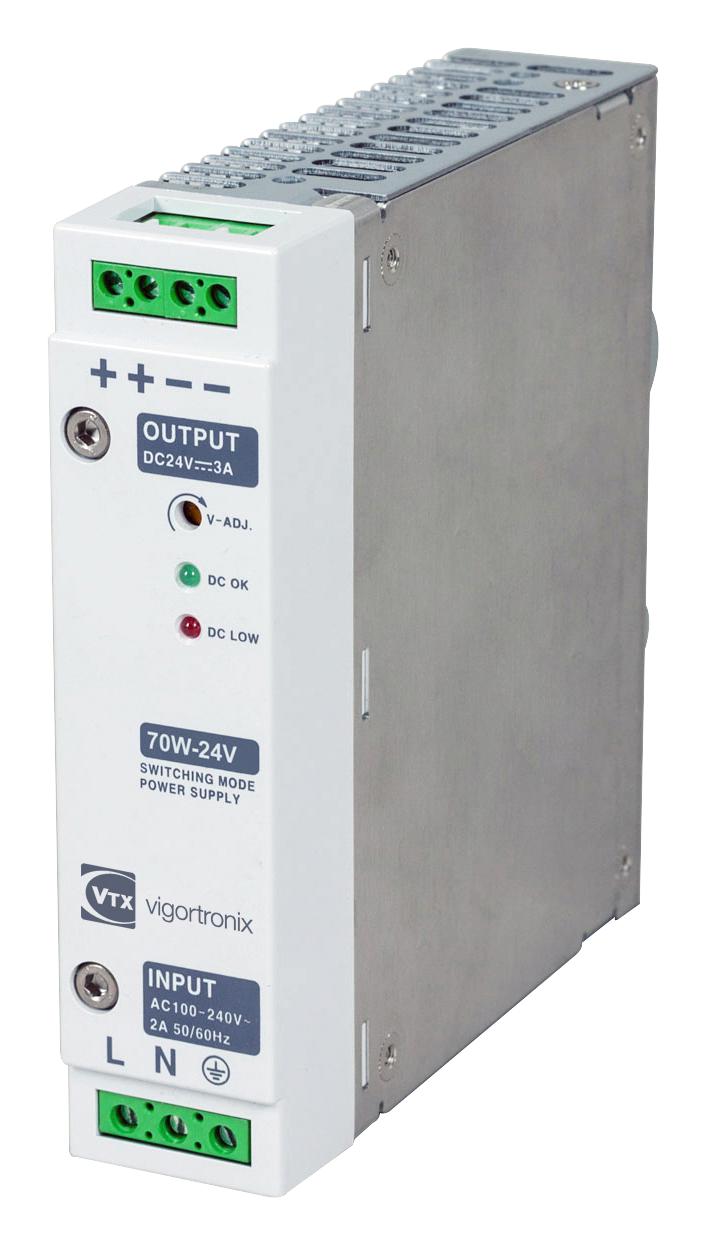

VIGORTRONIX VTX211070112 Industrial Power Supply
The Vigortronix 70 Watt Din Rail Power Supply provides reliable DC output with regulated voltage options ranging from 12V to 48V. It is designed for industrial applications such as process control, factory automation, and transportation systems. The power supply features high efficiency above 84%, low standby power, and fully isolated input-output with 3000Vrms. It operates over a wide input voltage range of 90-264VAC at 47-63Hz, with built-in protections including over-voltage, short circuit, and over-temperature. Its robust design ensures long-term durability in harsh environments, making it ideal for various industrial systems.
VIGORTRONIX VTX211070112 Industrial Power Supply Specifications:
- Power: 70W
- Output Voltage: 12V, 24V, 48V (options available)
- Output Current: 7.0A (12V), 3.0A (24V), 1.5A (48V)
- Input Voltage Range: 90-264VAC, 47-63Hz
- Efficiency: >84%, >86% at full load
- Ripple / Noise: 100mV (12V), 120mV (24V), 240mV (48V)
- Voltage Tolerance: ±5%
- Protection: Over Voltage, Short Circuit, Over Temperature
- Isolation Voltage: 3000Vrms (Pri-Sec), 1.5Kv (O/P-FG)
- Operating Temperature: -25°C to +70°C (derating required above 50°C)
- Storage Temperature: -40°C to +85°C
- Humidity: 20-95% RH (non-condensing)
- Dimensions and Weight: Compact design, approximately 650g
- Certifications: UL, IEC/EN 60950-1, Class B EMC standards
Buy the Buy Vigortronix Power Supply Part Number VTX211070112 Online
Order the Vigortronix 70-Watt industrial power supply online today to ensure dependable power for your automation and control systems. This regulated power supply features high efficiency above 84%, wide input voltage compatibility from 90 to 264VAC, and multiple output options of 12V, 24V, and 48V. It includes essential protections such as over-voltage, short circuit, and over-temperature safeguards, making it suitable for harsh industrial environments. Compact and reliable, it guarantees long-term operation and peace of mind for industrial control, automation, and transportation applications.
Buy Vigortronix VTX211070112 now and experience unmatched reliability and performance with robust industrial power solutions.
Frequently Asked Questions
Where can I buy VIGORTRONIX VTX211070112?
You can click on the BUY or RFQ button to purchase VTX211070112 from an authorized VIGORTRONIX distributor.
How do I troubleshoot issues or seek technical support for part VTX211070112?
You can download the VTX211070112 datasheet or visit the VIGORTRONIX website for support.
Who is the manufacturer of VTX211070112?
VIGORTRONIX
