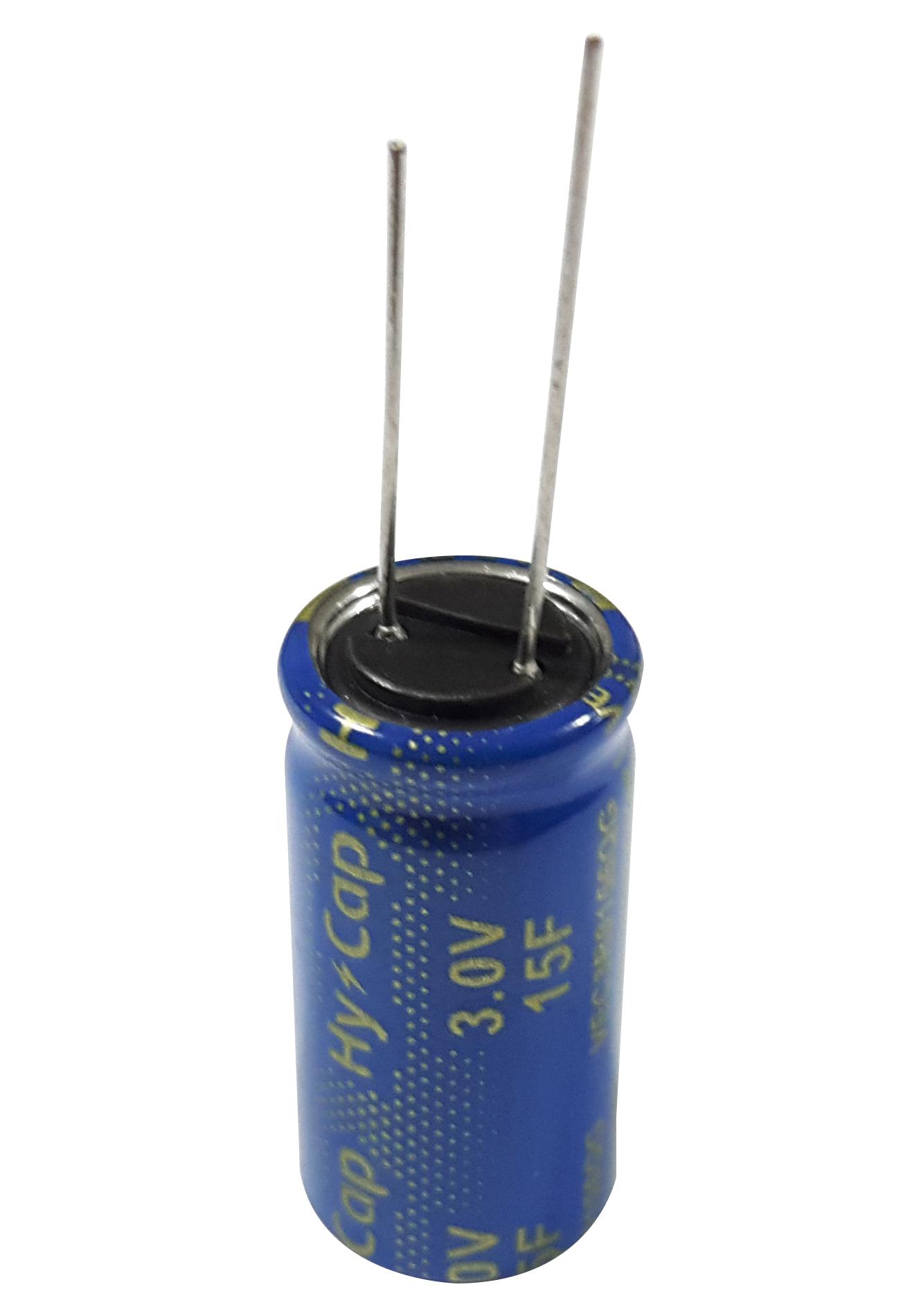

VINATECH VEC3R0156QG Electric Double Layer Capacitor
The EDLC 3.0V 15F capacitor is an electric double layer capacitor designed for rapid charge and discharge applications, offering higher power density with ultra low ESR. It features a radial design with lead terminals, suitable for short-term peak power assistance, and is UL and ISO/TS certified, ROHS compliant. Its compact dimensions are 13.0 mm in diameter and 25.0 mm in length, with excellent stability over a wide temperature range from -40°C to 70°C. This capacitor is ideal for short-term energy storage and power smoothing in various electronic devices.
VINATECH VEC3R0156QG Electric Double Layer Capacitor Specifications:
- Rated Voltage: 3.0V
- Capacitance: 15F with -10 ~ 30% tolerance
- ESR: < 100% of specified at 25°C
- Leakage Current: < 45mA after 72 hours at applied voltage
- Operating Temperature Range: -40°C to 70°C
- Storage Temperature: -40°C to 70°C
- Cycle Life: 500,000 cycles
- Shelf Life: 2 years without electrical charge
- Dimensions: Diameter 13.0 mm, Length 25.0 mm
- Weight: Approximately 0.6 g
- Design: Radial with lead terminals, UL and ISO/TS certified
- Maximum Discharge Current: 45.0 mA for 1 second
- Energy Storage: 67.5 Wh
- Material: Electric double layer dielectric
- Compliance: ROHS, UL, ISO/TS
Buy the Vina Series EDLC Capacitor: 3.0V 15F VEC3R0156QG
Enhance your electronic designs with the high-quality Vina Series EDLC capacitor. Featuring 3.0V and 15F capacitance, it provides rapid charge and discharge capabilities. Its compact radial design, UL certification, and low ESR ensure optimal performance for energy storage, power smoothing, and peak power assistance in various devices. Suitable for short-term energy needs, it operates effectively across -40°C to 70°C, and offers excellent cycle life of 500,000 cycles and a shelf life of 2 years, making it a reliable choice for demanding applications.
Order your Vina Series EDLC 15F capacitor today and enhance your electronic projects with reliable, quick-charging energy storage solutions.
