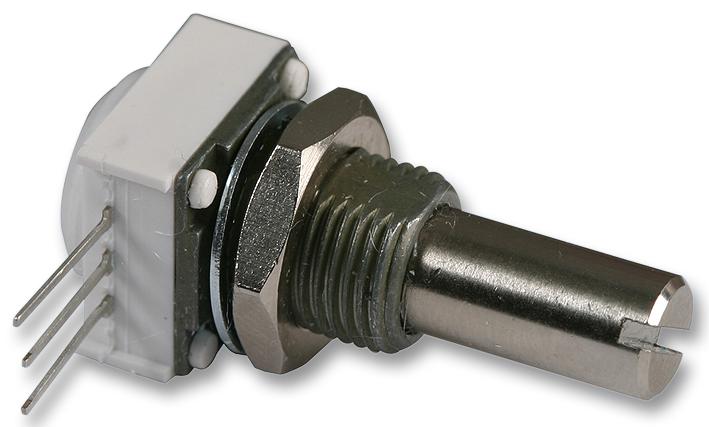

Vishay 14910A0BHSX10502KA Precision Potentiometer
This 1/2 inch conductive plastic and cermet potentiometer features robust construction, high rotational life of 50,000 cycles, RoHS compliance, and options for rotary switches and solder lugs. It offers ultra-smooth electrical output with low temperature coefficient (+150 ppm/°C), making it suitable for precise electronic applications. The potentiometer's dimensions include a 12.7 mm (0.5 inch) thread, with non-linear resistance ranges from 500 Q to 500 kQ and linear resistance from 1kQ to 1 MQ. Mechanical travel is typically 300° ± 5°, operating temperature from -40°C to +125°C, and it supports multiple mounting options, including support plates and locating pegs.
Vishay 14910A0BHSX10502KA Precision Potentiometer Specifications:
- Resistance Range: 1kQ to 1 MQ (linear), 500 Q to 500 kQ (non-linear)
- Tolerance: 10%, 20% on request
- Power Rating: 0.5 W at 70°C
- Electrical Travel: 300° ± 5°
- Effective Rotation: 270° + 10° without rotary switch, 240° + 10° with rotary switch
- Maximum Continuous Working Voltage: 350 Vac across end terminals
- Dielectric Withstanding Voltage: 750 Vac at sea level
- Operating Temperature: -40°C to +125°C
- Storage Temperature: -55°C to +125°C
- Mechanical Endurance: 50,000 cycles
- Operating Torque: 0.2 oz-in to 4.5 oz-in
- Sealing: IP64
- Bushing and Shaft: Various options, Bushing max torque 6.8 Ib-in
- Electrical Elements: Pure Sn terminals, Gold plated switch elements
- Dimensions: Thread 12.7 mm (0.5 inch), support plates, and locating pegs included
Buy the Vishay Spectrol Series Conductive Plastic and Cermet Potentiometer: 14910A0BHSX10502KA
Enhance your electronic assemblies with the Vishay 14910A0BHSX10502KA precision potentiometer, offering robust construction, long mechanical life of 50,000 cycles, and RoHS compliance. Its combination of conductive plastic and cermet elements provides consistent, low-noise electrical output with a low temperature coefficient. Suitable for demanding control and measurement applications, it features a 12.7 mm thread, multiple mounting options, and excellent electrical insulation. Purchase online today and ensure reliable performance in your next project.
Buy Vishay 14910A0BHSX10502KA potentiometer now and experience unmatched reliability and performance in your electronic design projects.
Frequently Asked Questions
Where can I buy Vishay 14910A0BHSX10502KA?
You can click on the BUY or RFQ button to purchase 14910A0BHSX10502KA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 14910A0BHSX10502KA?
You can download the 14910A0BHSX10502KA datasheet or visit the Vishay website for support.
Who is the manufacturer of 14910A0BHSX10502KA?
Vishay
