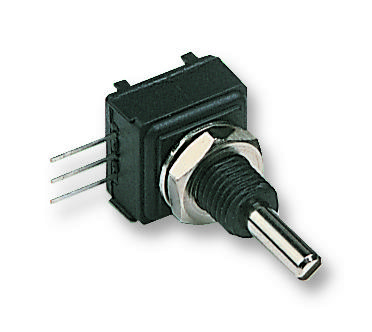

Vishay 249BBHS0XB25502KA Conductive Plastic Cermet Potentiometer
The Vishay Spectrol 249BBHS0XB25502KA is a versatile conductive plastic or cermet potentiometer, ideal for applications requiring precise resistance adjustment in a compact form factor. It's a cost-effective solution for panel mounting and offers both linear and logarithmic taper options to suit diverse circuit designs. The potentiometer's robust construction and reliable performance make it suitable for industrial equipment, consumer electronics, and automotive applications. It is designed for easy integration and provides accurate resistance control within a wide range of operating conditions.
Vishay 249BBHS0XB25502KA Conductive Plastic Cermet Potentiometer Specifications:
- Model: 249
- Element type: Cermet
- Total resistance range: 500 to 1 M
- Resistance tolerance: ± 20 %
- Power rating: 1 W at 70 °C
- Linearity: ± 5 %
- Limiting element voltage: 300 V
- Insulation resistance: 1000 M minimum, 500 VDC
- Dielectric strength: 750 VRMS minimum 50 Hz / 60 Hz
- Mechanical travel: 295° ± 5°
- Operating torque: 0.1 Ncm to 2 Ncm
- End stop torque: 35 Ncm (50 oz.-inch)
- Max. tightening torque: 150 Ncm
- Weight: 8.3 g
- Temperature range: -55 °C to +125 °C
- Climatic category: 55 / 125 / 4
- Sealing: IP 50
