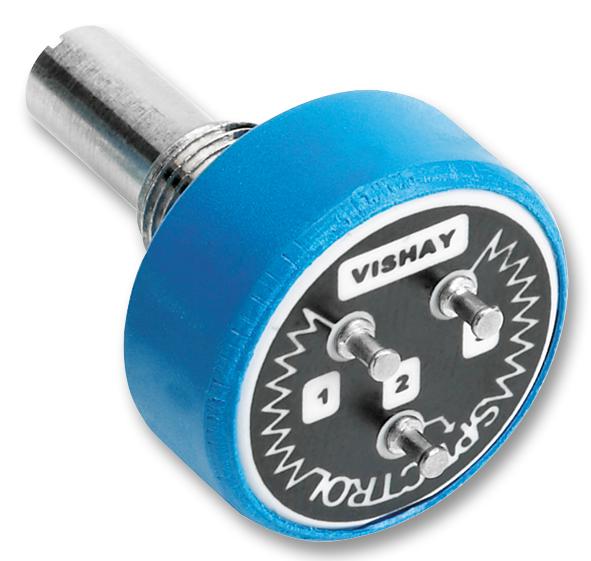

Vishay 357B2103MAB251S22 Rotary Potentiometer
The Vishay Spectrol Model 357B conductive plastic potentiometer is a compact, high-precision rotary sensor designed for industrial applications. Featuring a 22.2 mm diameter bushing mount, it offers a resistance range of 1KΩ to 50KΩ with tolerance variations of +20% or +10%. Its electrical specifications include a linearity of 0.1%, a TCR of 600 ppm/°C, and a maximum power rating of 7.0 W at 70°C. The device supports continuous 360° rotation with durable metal and thermoplastic construction, making it ideal for demanding industrial automation and control systems.
Vishay 357B2103MAB251S22 Rotary Potentiometer Specifications:
- Resistance: 1KΩ to 50KΩ with +20% or +10% tolerance
- Linearity: 0.1% maximum
- TCR: 600 ppm/°C maximum
- Power Rating: 7.0 W at 70°C, derated to 0 W at 125°C
- Electrical Travel: 340°-360°
- End Voltage: 0.5% maximum
- Dielectric Withstanding Voltage: 1000 V AC
- Insulation Resistance: 1000 MΩ at 500 V DC
- Rotational Type: Continuous 360° with optional stops
- Mounting Thread: 3/8 - 32 UNEF - 2A
- Shaft Diameter: 6.0 mm or 6.35 mm (metric/imperial options)
- Shaft Material: Stainless steel
- Housing: Thermoplastic
- Terminal Type: Solder plated turret terminals
- Shock Resistance: 50g
- Vibration Resistance: 15g, 10 Hz to 2000 Hz
- Operating Temperature Range: -55°C to +125°C
- Weight: Approximately 17.5 g
Buy the Vishay Series Spectrol Rotary Potentiometer: 357B2103MAB251S22
Order the Vishay Spectrol 357B2103MAB251S22 rotary potentiometer online today to ensure accurate, reliable resistance control in industrial automation. This high-quality sensor offers a resistance range from 1KΩ to 50KΩ with tight linearity and robust construction. Its 360° continuous rotation or with stops provides flexibility for various control applications. Featuring a durable thermoplastic housing, stainless steel shaft, and soldered turret terminals, it withstands harsh environments, making it the ideal choice for industrial machinery, control panels, and automation systems.
Get Vishay 357B2103MAB251S22 today—built for precision, durability, and industrial reliability.
Frequently Asked Questions
Where can I buy Vishay 357B2103MAB251S22?
You can click on the BUY or RFQ button to purchase 357B2103MAB251S22 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 357B2103MAB251S22?
You can download the 357B2103MAB251S22 datasheet or visit the Vishay website for support.
Who is the manufacturer of 357B2103MAB251S22?
Vishay
