Vishay AY1102M37Y5UC63L0 Automotive Ceramic Capacitors
The AY1 series ceramic capacitors by Vishay are automotive-grade, line-rated Y5U dielectric devices designed for AC line filtering, EMI/RFI suppression, and coupling applications in electric vehicle chargers and DC/DC converters. They offer high reliability, withstand high voltage pulses, and operate within -55°C to +125°C. These capacitors feature flame-retardant epoxy coating, are compliant with international safety standards, and are available in bulk, tape-and-reel, and ammopack packaging formats, ensuring ease of integration into automotive and industrial systems.
Vishay AY1102M37Y5UC63L0 Automotive Ceramic Capacitors Specifications:
- Ceramic Dielectric: Y5U
- Voltage (Vac): 500, 760
- Capacitance Range: 470 pF to 4700 pF
- Operating Temperature Range: -55°C to +125°C
- Dissipation Factor: Max. 2.5% at 1 kHz
- Insulation Resistance: 210 GΩ
- Capacitance Tolerance: +20% (code M)
- Body Diameter: 8.0 mm to 16.5 mm
- Lead Spacing: 10.0 mm or 12.5 mm
- Test Voltage: 4000 Vac, 50 Hz, 2s (Component test)
- Vibration Resistance: No visible damage, legible marking
- Humidity and Bias Testing: Capacitance change within ±10% or ±15% as specified
- Compliance: IEC 60384-14, UL 60384-14, RoHS, CQC
- Packaging: Bulk, tape and reel, ammopack
- Flame Retardant Coating: UL 94 V-0 epoxy resin
- Approvals: VDE, UL, CSA, DIN EN 60384-14
- Life and Humidity Tests: 1000h at 125°C, 85°C, and under bias, with no visible damage

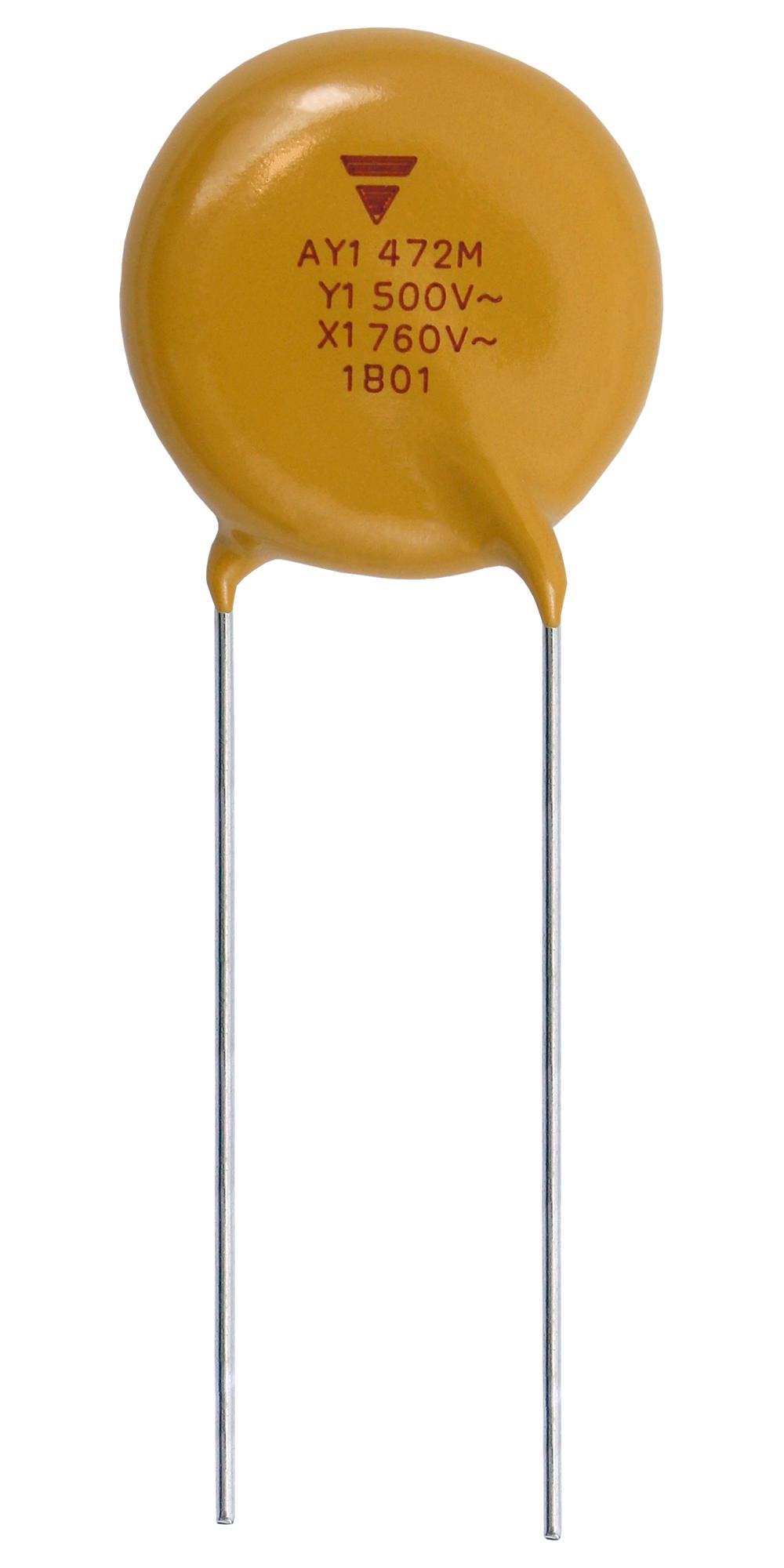

Buy the VISHAY AY1 – Reliable Ceramic Capacitors for Industrial Applications
Purchase Vishay AY1 series automotive ceramic capacitors online to ensure high reliability, excellent filtering, and safety compliance for demanding industrial and automotive applications. engineered to withstand high voltages and temperature extremes, these capacitors are ideal for electric vehicle chargers, DC/DC converters, and EMI/RFI suppression. Available in bulk and reel formats, they are easy to integrate into your manufacturing process. Order now to secure top-quality, flame-retardant ceramic capacitors with proven performance and compliance with international safety standards—perfect for professional industrial deployments.
Get Vishay AY1 series ceramic capacitors today—built for automotive-grade reliability and high-voltage filtering performance.
Frequently Asked Questions
Where can I buy Vishay AY1102M37Y5UC63L0?
You can click on the BUY or RFQ button to purchase AY1102M37Y5UC63L0 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part AY1102M37Y5UC63L0?
You can download the AY1102M37Y5UC63L0 datasheet or visit the Vishay website for support.
Who is the manufacturer of AY1102M37Y5UC63L0?
Vishay
