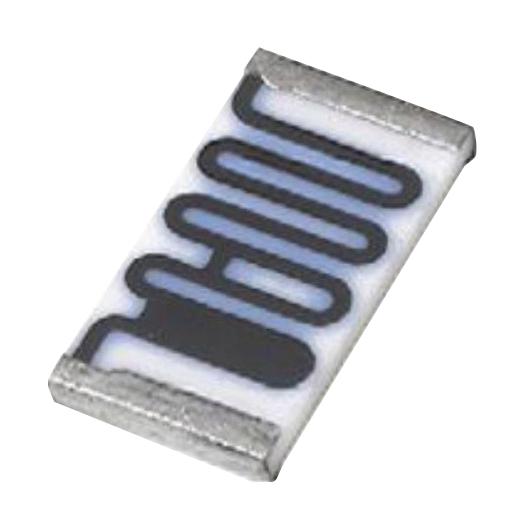

Vishay CRHA1206AF47M0FKEF High Voltage Thick Film Resistor
High-voltage thick film chip resistor designed for demanding applications, offering outstanding stability below 0.5%, high resilience up to 3000 V, and broad resistance values from 4M to 500M ohms. The resistor features a ruthenium oxide resistive element, glass encapsulation, and a nickel barrier termination with pure tin finish. Suitable for automated placement, it complies with international standards, and operates reliably between -55°C to +155°C. Its robust construction ensures long-term performance under temperature cycling, humidity, and high-voltage conditions, making it ideal for precision electronics demanding high stability and electrical resilience.
Vishay CRHA1206AF47M0FKEF High Voltage Thick Film Resistor Specifications:
- Model sizes: 1206, 1210, 2010, 2510, 2512
- Power ratings: 0.30 W to 1.0 W
- Maximum voltage: 1500 V to 3000 V
- Resistance values: 4M to 500M ohms
- Tolerance options: 0.5%, 1%, 2.5%, 10%, 20%
- Coefficient of resistance: 10 ppm/°C to 250 ppm/°C
- Operating temperature: -55°C to +155°C
- Terminal material: Solder-coated nickel barrier
- Resistive element: Ruthenium oxide
- Encapsulation: Glass
- Substrate: Alumina (96%)
- Dimensions (mm): Length varies from 3.175 to 6.35, Width from 1.588 to 3.175, Thickness 0.635
- Life stability: Less than 0.5% change at rated power
- Environmental resistance: High humidity, thermal shock, and high-temperature exposure tested
Buy the Buy Vishay High Voltage Thick Film Resistor Part Number CRHA1206AF47M0FKEF Online
Purchase the Vishay high voltage thick film resistor online today to ensure excellent stability, high resistive values up to 500M ohms, and reliable performance under extreme voltage and temperature conditions. Its robust construction and broad resistance range make it ideal for high-voltage circuits, precision measurement, and stability-critical applications. Enjoy seamless ordering, quick delivery, and trusted quality that meets industrial standards for durability and accuracy. Enhance your electronic designs with this dependable component, available now for fast online purchase.
Buy Vishay CRHA1206AF47M0FKEF high voltage resistor now and experience unmatched reliability and performance in demanding applications.
Frequently Asked Questions
Where can I buy Vishay CRHA1206AF47M0FKEF?
You can click on the BUY or RFQ button to purchase CRHA1206AF47M0FKEF from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part CRHA1206AF47M0FKEF?
You can download the CRHA1206AF47M0FKEF datasheet or visit the Vishay website for support.
Who is the manufacturer of CRHA1206AF47M0FKEF?
Vishay
