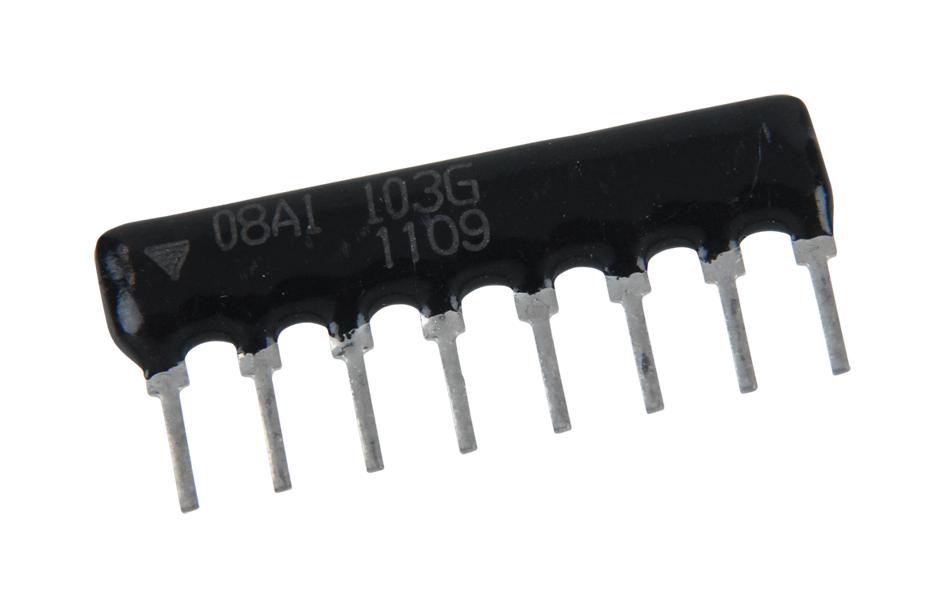

Vishay CSC06A01510RGEK Resistor Network
The CSC series resistor networks are compact, conformally coated thick film resistors designed for circuit applications requiring isolated, bussed, or dual termination configurations. Available in “A” and “B” profiles, these resistor networks feature wide resistance ranges from 10 Ω to 2.2 MΩ and meet RoHS standards. They are suitable for wired OR pull-up, line termination, impedance balancing, and LED current limiting. The sturdy epoxy coating protects the resistive elements, ensuring reliability in various industrial and electronic applications.
Vishay CSC06A01510RGEK Resistor Network Specifications:
- Profiles: A profile = 0.195 inches (4.95 mm), B profile = 0.295 inches (7.50 mm), custom options available
- Resistance Range: 10 Ω to 2.2 MΩ
- Power Rating: A profile up to 1.5W, B profile up to 1.9W (at 70°C)
- Temperature Range: -55°C to +125°C
- Dielectric Strength: 200 V
- Isolation Resistance: > 100 MΩ
- Body Material: High alumina, epoxy coated
- Terminals: Solder plated leads
- RoHS compliant: Yes
- Impedance Codes: Ranges from 82 Ω to 3.3 KΩ
- Max Pin Count: 4 to 12 pins depending on model
- Solderability: Meets MIL-STD-202, method 208E
- Working Voltage: Continues to be specified per model
- Resistor Tolerance: ±1%, ±2%, ±5%
- Applied Applications: Pull-up, pull-down, line termination, impedance balancing, LED current limiting
Buy the Vishay Series CSC Resistor Networks: CSC06A01510RGEK
Purchase the Vishay CSC series resistor network online today to benefit from high-quality, conformally coated thick film resistors that offer precise resistance values, robust construction, and RoHS compliance. Ideal for line termination, impedance matching, pull-up, and pull-down applications, these resistor networks support quick deployment in industrial, telecommunication, and electronic circuits. With excellent thermal stability, solderability, and a wide resistance range from 10 Ω to 2.2 MΩ, ordering online ensures fast delivery and consistent performance for your technical needs.
Buy Vishay CSC06A01510RGEK resistor network now and experience reliable performance for your circuit and industrial applications.
Frequently Asked Questions
Where can I buy Vishay CSC06A01510RGEK?
You can click on the BUY or RFQ button to purchase CSC06A01510RGEK from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part CSC06A01510RGEK?
You can download the CSC06A01510RGEK datasheet or visit the Vishay website for support.
Who is the manufacturer of CSC06A01510RGEK?
Vishay
