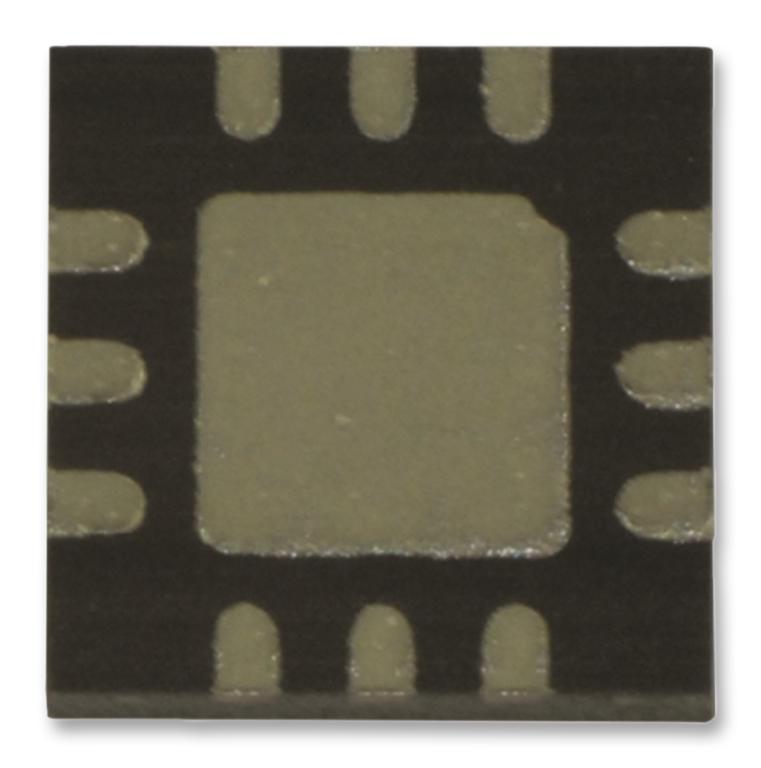

Vishay DG2034EDNT1GE4 High-Speed Multiplexer
The DG2034E is a four-channel multiplexer designed for wide voltage operation from 1.8 V to 5.5 V. It features power down fault protection, low on-resistance of 2.5 Ω, high signal bandwidth of 166 MHz, and low charge injection of 2 pC. Suitable for data acquisition, video switching, and instrumentation, it offers low parasitic capacitance, high ESD tolerance of 8 kV, and break-before-make switching. Available in compact MSOP10 and QFN12 packages, this device is ideal for low power, high-speed switching applications in various industries.
Vishay DG2034EDNT1GE4 High-Speed Multiplexer Specifications:
- Supply Voltage Range: 1.8 V to 5.5 V
- On-Resistance: 2.5 Ω
- Bandwidth: 166 MHz
- Charge Injection: 2 pC
- ESD Tolerance: 8 kV
- Package Types: MSOP10, QFN12
- Switching Time: 13 ns
- Leakage Current: ±2 pA
- Analog Signal Range: 0 to V+
- Operating Temperature: -40°C to +85°C
- Power Dissipation (Package): 1208 mW
- Break-before-make switching
- High signal bandwidth for video and RF applications
- Low parasitic capacitance (7 pF source-off)
- Built-in fault protection and high ESD robustness
- Small form factor with compact packages
Buy the Vishay DG2034E – Reliable Multiplexer for Industrial Applications
Experience the efficiency and reliability of the Vishay DG2034E multiplexer. With low resistance, high bandwidth, and robust fault protection, it ensures optimal performance in data acquisition, video switching, and automation systems. Its compact MSOP10 and QFN12 packages make integration easy for space-constrained applications. Whether for measurement setups or industrial automation, this multiplexer offers fast switching times and dependable operation. Purchase online today to enhance your electronic systems with a durable, high-performance component designed for demanding environments.
Get Vishay DG2034E today—built for precision and long-lasting durability in high-speed switching and instrumentation.
Frequently Asked Questions
Where can I buy Vishay DG2034EDNT1GE4?
You can click on the BUY or RFQ button to purchase DG2034EDNT1GE4 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part DG2034EDNT1GE4?
You can download the DG2034EDNT1GE4 datasheet or visit the Vishay website for support.
Who is the manufacturer of DG2034EDNT1GE4?
Vishay
