Vishay DG406DNE3 High-Performance Analog Multiplexer
The DG406 is a high-performance 16-channel analog multiplexer designed for precise signal routing in data acquisition, audio, medical, and high-rel systems. It features a break-before-make switching action, low on-resistance of 50 ohms, low charge injection of 15 pC, and fast transition time of 200 ns. Its single supply capability up to 44 V, RoHS compliance, and low power dissipation of 0.2 mW make it ideal for battery-powered and remote instrumentation applications. Configurable in 28-pin DIP, PLCC, or SOIC packages, it ensures reliable operation over wide temperature ranges.
Vishay DG406DNE3 High-Performance Analog Multiplexer Specifications:
- Input Voltage Range: Full 15 V
- On-Resistance: 50 ohms
- Charge Injection: 15 pC
- Transition Time: 200 ns
- Supply Voltage: up to 44 V, single supply 12 V operation
- Power Dissipation: 0.2 mW
- Temperature Range: -40°C to 85°C
- Package Options: 28-Pin Plastic DIP, PLCC, SOIC
- Leakage Currents: 0.04 A (full range)
- Voltage Referenced to V- or V+
- Peak Current (pulsed 1 ms, 10% duty cycle): 700 mA
- RoHS Compliant, Halogen-Free

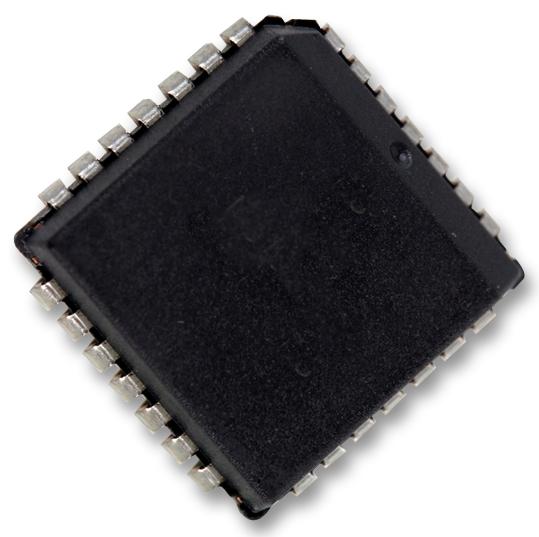

Buy the Buy Vishay DG406 Part Number DG406DNE3 Online
Purchase your Vishay DG406 analog multiplexer online now to experience superior signal routing for data acquisition, audio, and medical instrumentation. Engineered with low on-resistance, fast switching times, and wide supply range up to 44 V, the DG406 guarantees high accuracy and low noise performance. Its compact 28-pin package options and RoHS compliance ensure easy integration into your designs. Whether for battery-powered or high-rel systems, order directly online and benefit from quick delivery, excellent performance, and trusted Vishay quality for your critical projects.
Order your Vishay DG406 today and enhance your signal switching quality with reliable, low-resistance analog multiplexers designed for demanding applications.
Frequently Asked Questions
Where can I buy Vishay DG406DNE3?
You can click on the BUY or RFQ button to purchase DG406DNE3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part DG406DNE3?
You can download the DG406DNE3 datasheet or visit the Vishay website for support.
Who is the manufacturer of DG406DNE3?
Vishay
