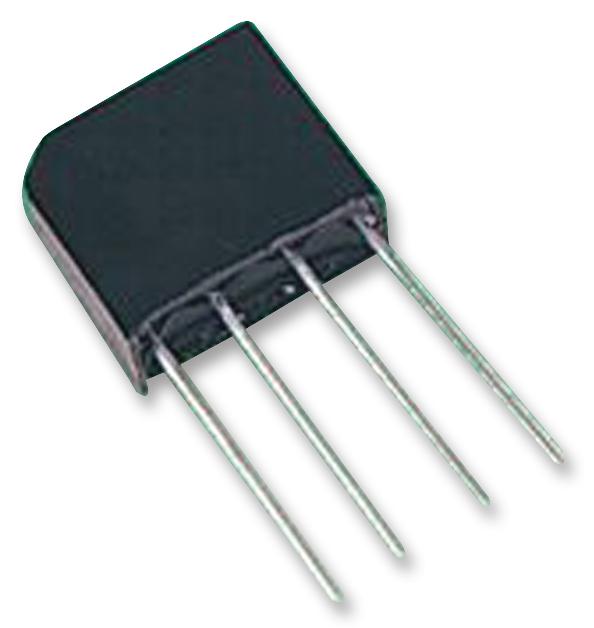

Vishay GBU8GE351 Single-Phase Bridge Rectifier
The GBU8GE351 is a glass passivated, single-phase bridge rectifier suitable for general purpose AC/DC full wave rectification applications. It features a high surge current capability, high case dielectric strength of 1500 V, and a maximum junction temperature of 150°C. Its compact case style is ideal for printed circuit boards, with matte tin-plated terminals for easy soldering. Designed for use in monitors, power supplies, switching mode power supplies, audio equipment, and household appliances, it offers reliability and excellent thermal performance. Certifications include UL recognition and RoHS compliance, ensuring safety and environmental standards are met.
Vishay GBU8GE351 Single-Phase Bridge Rectifier Specifications:
- Package: GBU
- Maximum repetitive peak reverse voltage: 50V, 100V, 200V, 400V, 600V, 800V, 1000V
- Maximum RMS voltage: 35V, 70V, 140V, 280V, 420V, 560V, 700V
- Maximum DC blocking voltage: 50V, 100V, 200V, 400V, 600V, 800V, 1000V
- Maximum average forward rectified current: 8.0A at 60°C
- Peak forward surge current: 200A (single sine-wave)
- Operating junction temperature: -55°C to +150°C
- Maximum case temperature: 150°C
- Terminal material: Matte tin-plated solderable, meets J-STD-002 and JESD 22-B102
- Flammability rating: UL 94 V-0
- Mounting: Suitable for PCB or heatsink mounting with recommended torque
- Dimensions: Length 0.880 inches (22.3mm), Width 0.690 inches (17.5mm), Height 0.310 inches (7.9mm)
Buy the Buy Vishay GBU8GE351 Part Number GBU8GE351 Online
Purchase the Vishay GBU8GE351 online for reliable AC/DC full wave rectification in power supplies, monitors, and household equipment. Designed with high surge current capacity and thermal robustness, it guarantees long-lasting performance. Its UL recognition and RoHS compliance make it suitable for environmentally conscious and safety-demanding applications. Easy PCB mounting and compact size simplify integration into complex circuits. With excellent dielectric strength and robust construction, this bridge rectifier ensures efficient electrical performance and durability across a wide range of operating conditions. Order now for fast delivery and high-quality power conversion capabilities.
Get Vishay GBU8GE351 today—built for high surge current and reliable power rectification in various electronic applications.
Frequently Asked Questions
Where can I buy Vishay GBU8GE351?
You can click on the BUY or RFQ button to purchase GBU8GE351 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part GBU8GE351?
You can download the GBU8GE351 datasheet or visit the Vishay website for support.
Who is the manufacturer of GBU8GE351?
Vishay
