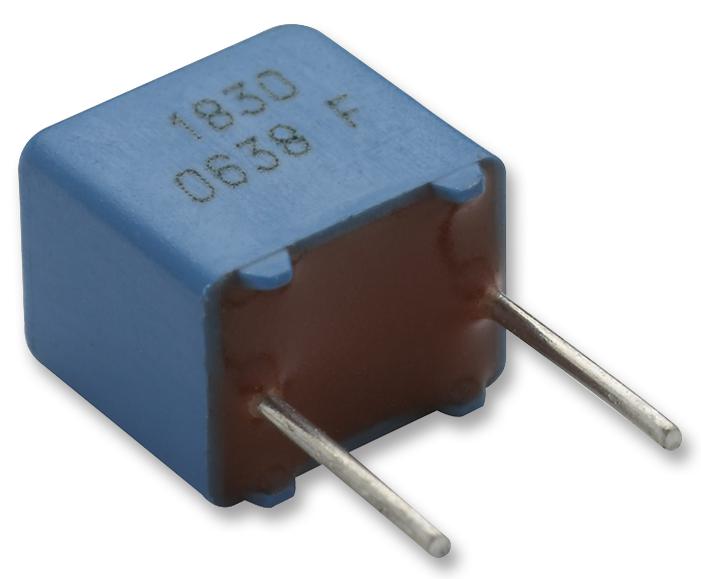

Vishay KP1830147631 Film Capacitor
These high-quality film foil capacitors are designed for oscillator, timing, and LC/RC filter circuits, offering reliable performance in high-frequency applications. Constructed with polypropylene film dielectrics and tin foil electrodes, they feature a plastic case sealed with epoxy resin, UL 94 V-0 flame retardant. Rated for voltages up to 630 V DC, with capacitance ranging from 100 pF to 0.022 μF and temperature tolerance options from ±1% to ±25%. Suitable for mounting on printed circuit boards, they withstand temperatures up to 100°C and climatic conditions per IEC standards, ensuring durability and stability in complex electronic systems.
Vishay KP1830147631 Film Capacitor Specifications:
- Dielectric: Polypropylene film
- Electrodes: Tin foil
- Construction: Mono construction
- Rated DC Voltages: 63 V, 250 V, 630 V
- Rated AC Voltages: 40 V, 160 V, 250 V
- Capacitance Range: 100 pF to 0.022 μF
- Capacitance Tolerance: ±1%, ±2%, ±5%, ±10%, ±25%
- Temperature Rating: Max. 100°C
- Implications: Suitable for high-frequency oscillator, timing, LC/RC filter circuits
- Construction Features: Plastic case, epoxy resin sealed, UL class 94 V-0 flame retardant
- Climatic Testing Class: 55/100/56 IEC 60068-1
- Lead Pitch: 5 mm
- Packaging: Loose in box, taped in Py, reel portree
- Standards: IEC 60384-13
Buy the Vishay Series KP Capacitor: KP1830147631
Purchase the Vishay Series KP1830147631 film foil capacitor online now to enhance your electronic circuits' performance. Perfect for oscillator, timing, and filter applications, this capacitor features polypropylene dielectric and tin foil electrodes. It boasts a voltage rating up to 630 V DC, with capacitance options from 100 pF to 0.022 μF, ensuring compatibility with high-frequency and precision circuits. The robust plastic case, epoxy sealing, and UL flame retardant materials provide durability and safety. Order today for fast delivery and reliable quality that meets industry standards for temperature and climatic conditions.
Order your Vishay Series KP1830147631 film foil capacitor today and ensure high-performance reliability in your high-frequency electronic projects.
