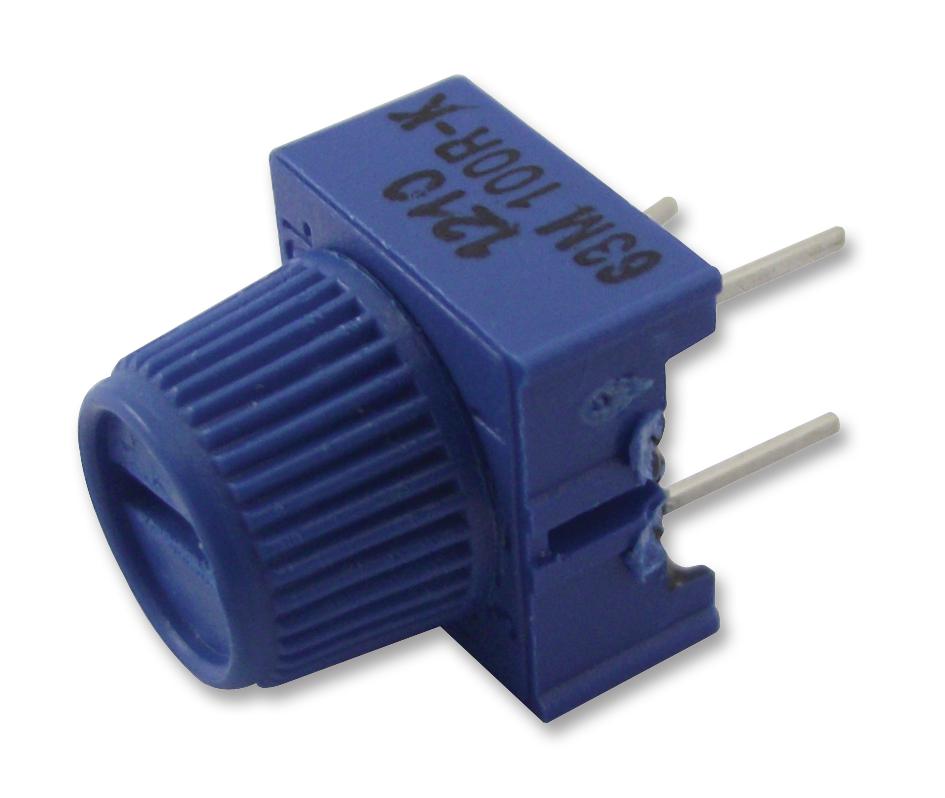

Vishay M63M201KB30T607 cermet trimmer
The Vishay Spectrol Model 63 cermet trimmer is a compact, reliable, and adjustable potentiometer ideal for precise resistance tuning in electronic circuits. Featuring a 3/8 inch (10 mm) square housing with arrow and graduation markings, it allows quick, repeatable adjustments with a multi-finger wiper and solid end stop. Suitable for precise applications, it offers resistance ranges from 100Ω to 2 MΩ with a tolerance of ±10%. The trimmer is RoHS compliant, sealed with an ‘O’ ring for solvent and aqueous washing, and conforms to industry standards CECC 41000 and IEC 60393-1, ensuring durability and environmental reliability.
Vishay M63M201KB30T607 cermet trimmer Specifications:
- Effective travel: 270° nominal
- Resistance range: 100Ω to 2 MΩ
- Resistance tolerance: ±10%
- End resistance: 2Ω or 1% whichever is greater
- Temperature coefficient of resistance: +100 ppm/°C
- Power rating: 0.5 W at +70°C, derated to 0 W at 125°C
- Maximum voltage: 250 V
- Dielectric withstand voltage: 1000 Vac at sea level, 250 Vac at 80,000 ft
- Insulation resistance: ≥1000 MΩ at 600 Vdc
- Mechanical travel: 300° +50
- Starting torque: Max 35 mNm
- Weight: Max 0.85 g
- Sealing: IP64, RoHS compliant
- Environmental temperature range: -55°C to +125°C
- Climatic category: 56/125/21
- Terminals: Pure Sn (code 3)
Buy the Buy Vishay Spectrol Model 63 Part Number M63M201KB30T607 Online
Order the Vishay Model 63 cermet trimmer online today to enjoy precise resistance adjustment in compact, sealed design. Engineered for durability, it features an IP64 rated housing, RoHS compliance, and a wide resistance range from 100Ω to 2 MΩ with ±10% tolerance. Suitable for various electronic applications, this high-quality trimmer ensures reliable performance with easy adjustment, making it ideal for manufacturing, repair, and calibration tasks. Get yours now for superior precision and dependable operation in demanding environments.
Buy Vishay Model 63 M63M201KB30T607 now and experience precise resistance tuning with durable, sealed construction for reliable performance.
Frequently Asked Questions
Where can I buy Vishay M63M201KB30T607?
You can click on the BUY or RFQ button to purchase M63M201KB30T607 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M63M201KB30T607?
You can download the M63M201KB30T607 datasheet or visit the Vishay website for support.
Who is the manufacturer of M63M201KB30T607?
Vishay
