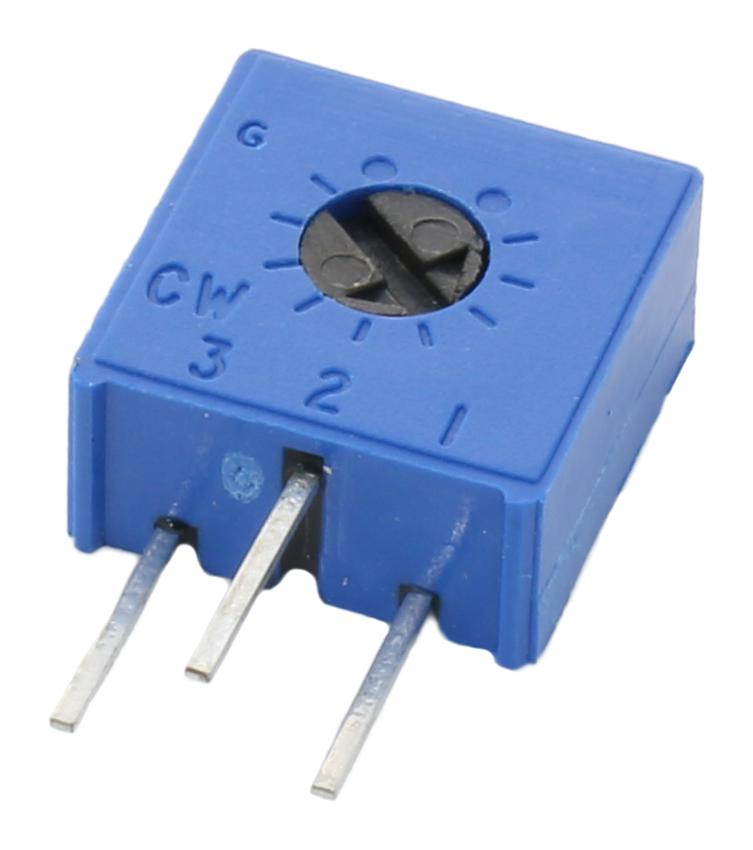

Vishay M63X101KB40 Precision Trimmer
The Vishay Spectrol 63 series is a high-precision, 3/8-inch square (10 mm) single-turn cermet trimmer with a robust design suited for precise adjustments in electronic circuits. Features include an arrow and graduations for repeatability, an "O" ring seal for solvent and aqueous washing compliance, and a multi-finger wiper for better contact resistance. It offers resistance ranges from 100Ω to 2MΩ with tolerance ±10%, and has a compact form factor with various pin configurations for top or side adjustment, making it ideal for demanding industrial and electronic applications.
Vishay M63X101KB40 Precision Trimmer Specifications:
- Resistance range: 100Ω to 2MΩ with ±10% tolerance
- Effective travel: 270° nominal
- Resistance tolerance: ±10%
- Power rating: 0.5 W at +70°C, derated to 0 W at 125°C
- Maximum voltage: 250 V
- Dielectric withstand voltage: 1000 Vac at sea level
- Insulation resistance: ≥ 1000 MΩ at 600 V
- Contact resistance variation: ≤ 1%
- Mechanical travel: 300° ±50
- Operating temperature: -55°C to +125°C
- Sealing: IP64
- Climatic category: 56/125/21
- Vibration resistance: 98 m/s², 10Hz to 500Hz
- Electrical endurance: 1000 hours at specified conditions
- Weight: ≤ 0.85 g
- Terminals: Pure Sn (code 3)
Buy the VISHAY M63X101KB40 – Reliable Electronic Adjustment for Industrial Applications
Purchase the Vishay M63X101KB40 precision trimmer online today for exceptional accuracy in electronic adjustments. Designed with a robust sealed housing, it ensures reliable performance across a wide temperature range. Its multi-finger wiper contact minimizes resistance variations, ideal for high-precision applications in industrial equipment and electronics. With resistance values from 100Ω to 2MΩ and tolerance of ±10%, this trimmer guarantees accuracy and durability for demanding projects. Easy to install with various pin configurations, it is perfect for custom electronic control systems and repair needs.
Get Vishay M63X101KB40 today—built for precision and long-lasting durability in electronic circuits.
Frequently Asked Questions
Where can I buy Vishay M63X101KB40?
You can click on the BUY or RFQ button to purchase M63X101KB40 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M63X101KB40?
You can download the M63X101KB40 datasheet or visit the Vishay website for support.
Who is the manufacturer of M63X101KB40?
Vishay
