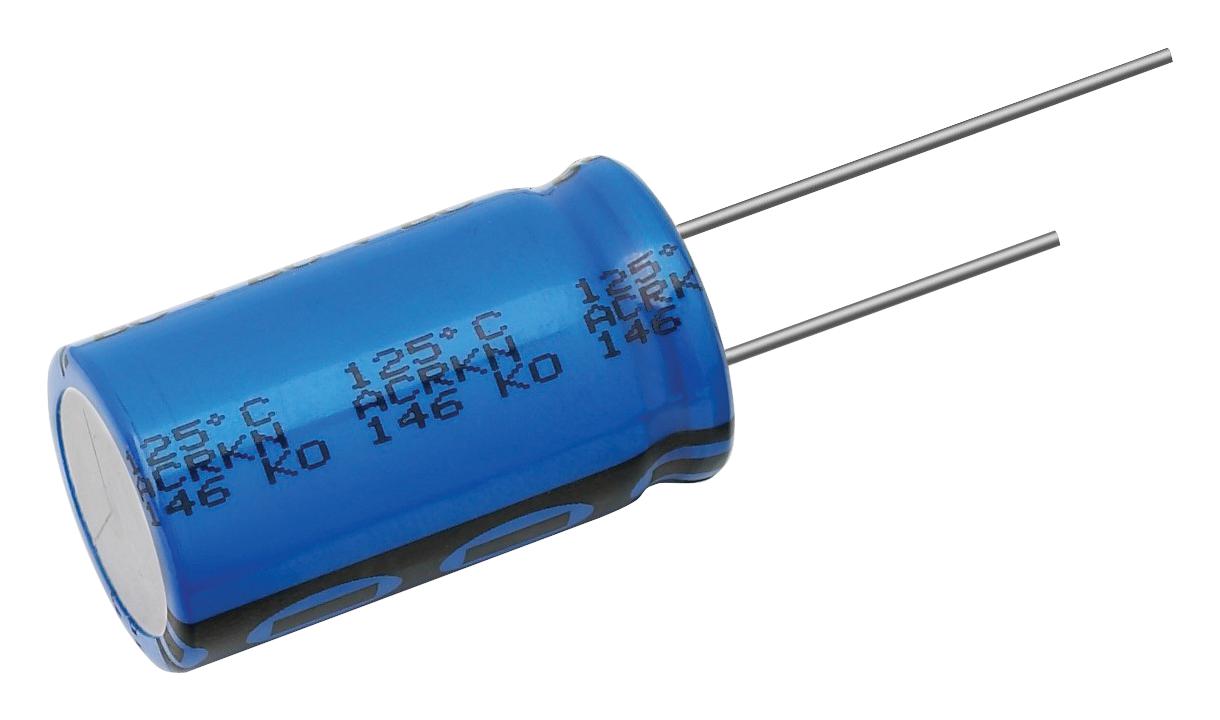

Vishay MAL219050102E3 Aluminum Electrolytic Capacitor
The 190 RTL radial leaded aluminum electrolytic capacitors are high-temperature, polarized capacitors with non-solid electrolytes. They feature low impedance and very low ESR, offering high stability, long service life, and high reliability. These automotive-grade capacitors are AEC-Q200 qualified and provide excellent ripple current capability. Designed with radial leads, they come in a cylindrical aluminum case with pressure relief vent and are insulated with a blue PET sleeve. Charge and discharge proof, suitable for power supplies in industrial, automotive, telecom, and military applications, especially for smoothing, filtering, and buffering functions.
Vishay MAL219050102E3 Aluminum Electrolytic Capacitor Specifications:
- Capacitance Range: 100 UF to 6800 pF
- Rated Voltage: 16 V to 50 V
- Useful Life: 2500 h to 6000 h at 125°C
- Case Sizes: 10x12 mm to 18x35 mm
- Temperature Rating: Up to 125°C
- Features: Low ESR, high ripple current, charge/discharge proof
- Constructed with cylindrical aluminum case, pressure relief vent, blue PET insulation
- Qualified: AEC-Q200 automotive standards
- Markings: Nominal case size, capacitance, voltage, date code, factory code
- Packaging: Tape, boxed, bulk options depending on size
Buy the Vishay Series 190 RTL Aluminum Electrolytic Capacitor: MAL219050102E3
Enhance your power supply systems with Vishay 190 RTL aluminum electrolytic capacitors. Designed for high temperature, long life, and low ESR, these capacitors ensure stability, reliability, and excellent ripple current capability. Perfect for smoothing, filtering, and buffering in industrial, automotive, telecommunications, and military applications. With radial leads, cylindrical aluminum case, and pressure relief, they are charge and discharge proof for a wide range of power management needs. Order online today and upgrade your electronic systems with top-tier capacitors that deliver exceptional performance and durability.
Buy Vishay 190 RTL aluminum electrolytic capacitors now and experience unmatched reliability and performance in demanding industrial and automotive environments.
Frequently Asked Questions
Where can I buy Vishay MAL219050102E3?
You can click on the BUY or RFQ button to purchase MAL219050102E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL219050102E3?
You can download the MAL219050102E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL219050102E3?
Vishay
