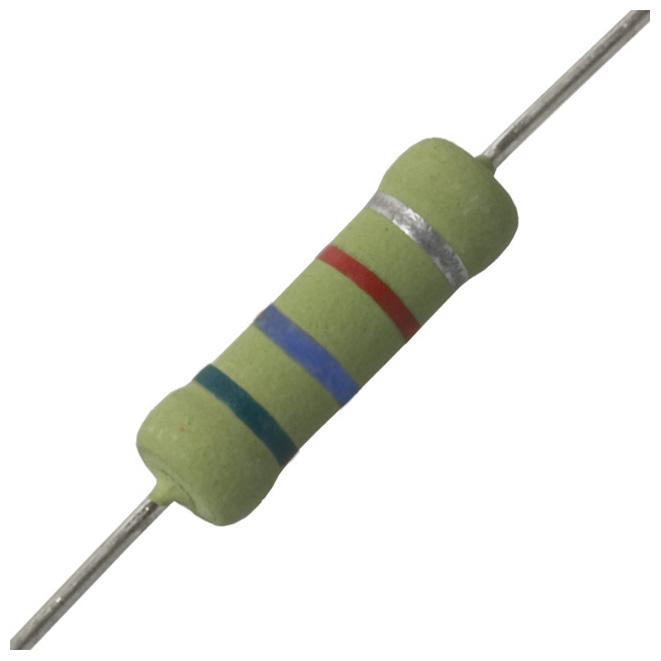

Vishay MBB02070C2000FRP00 Thin Film Resistor
Professional thin film leaded resistors designed for high stability and reliability across various industrial, automotive, medical, and telecommunication applications. These resistors feature a wide ohmic range from 0.22 to 22 MΩ, excellent temperature stability, and thermal endurance up to 155°C. Available in CECC and CECC-approved versions with optional radial taping, they are suitable for automatic insertion and soldering processes. Manufacturing follows strict quality standards, ensuring consistent performance, RoHS compliance, halogen-free materials, and robust environmental resistance including temperature, humidity, and mechanical stress.
Vishay MBB02070C2000FRP00 Thin Film Resistor Specifications:
- Resistance range: 0.22 Ω to 22 MΩ
- Resistance tolerance: ±5%, ±4%, ±1%, ±0.5%
- Temperature coefficient: +50 ppm/K or +25 ppm/K
- Rated dissipation: 0.4 W (0204), 0.6 W (0207), 1.0 W (0414)
- Operating voltage: 200 V (0204), 350 V (0207), 500 V (0414)
- Operating temperature: -55°C to +155°C
- Peak film temperature: 155°C
- Insulation voltage: up to 800 V
- Resistance stability over life: <0.5% over 8000 hours at high temp
- Material: Metal alloy on ceramic body with plated steel terminations
- Compliance: RoHS, halogen-free, IECQ-CECC approved versions available
- Body dimensions: 0204 29mm length, 0207 28mm length, 0414 31mm length
- Lead spacing: 2.5 mm (0207), 5 mm (0207 with radial taping)
Buy the Vishay Series Professional Thin Film Resistors: MBB02070C2000FRP00
Purchase the Vishay Series MBB02070C2000FRP00 thin film resistor online today to benefit from exceptional stability, wide resistance range, and high environmental durability. Perfect for critical industrial, automotive, and medical applications, this resistor offers precise resistance tolerance, RoHS compliance, and CECC approval, ensuring long-term reliability. Available in various packages with optional radial taping for automated processing, it guarantees consistent quality, excellent thermal endurance up to 155°C, and ease of integration into your electronic designs. Secure your supply now for dependable project performance.
Order your Vishay Series MBB02070C2000FRP00 high-stability thin film resistor today and ensure reliable performance for your industrial and automotive projects.
