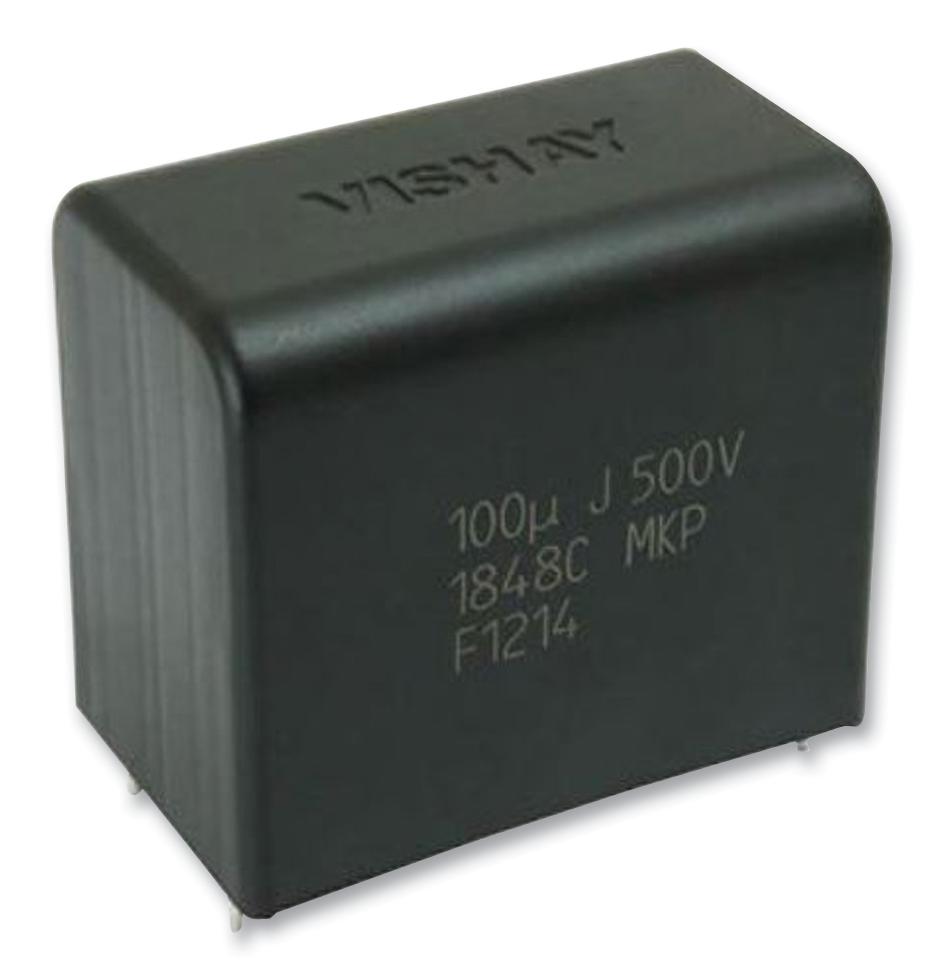

Vishay MKP1848C65090JY5 DC-Link Capacitor
High-performance metallized polypropylene film capacitor designed for high density DC-link applications, offering long useful life up to 100,000 hours at 70°C, with low ESR and ESL, high ripple current capability, and a temperature range up to 105°C. Suitable for renewable energy inverters, UPS, battery chargers, and motor drives, featuring sealed resin encapsulation with radial mounting, and compliance with RoHS standards for reliable power supply filtering and energy storage in demanding environments.
Vishay MKP1848C65090JY5 DC-Link Capacitor Specifications:
- Dielectric: Polypropylene film
- Capacitance range: 1 μF to 500 μF
- Capacitance tolerance: ±25%
- Rated temperature: 85°C, maximum case temperature: 105°C
- Peak ripple voltage: 0.2 x Unoc
- Construction: Mono wound, metallized dielectric
- Encapsulation: Flame-retardant plastic case sealed with resin
- Terminals: Tinned wire, radial mounting
- Self inductance: <1 nH per mm lead spacing
- Withstanding DC voltage: 1.5 Unoc for 10 s
- Insulation resistance: >10,000 s after 1 min
- Lifelong expectancy: >100,000 hours at Unoc and 70°C
- Standards: IEC 61071, IEC 60068
- RoHS compliant, RoHS
- Operating environment: Suitable for renewable energy inverters, UPS, battery chargers, motor drives
- Mounting: Radial, sealed in resin with flame retardant material
Buy the Buy Vishay Metallized Polypropylene Film Capacitor Part Number MKP1848C65090JY5 Online
Secure your power systems with the Vishay Metallized Polypropylene Film Capacitor MKP1848C65090JY5. Designed for high density, long life up to 100,000 hours, and low ESR/ESL, it ensures robust performance in renewable energy inverters, UPS, and motor drives up to 105°C. Its sealed resin encapsulation provides durability and compliance with RoHS standards. Order online today and benefit from fast delivery, reliable operation, and proven quality for critical power applications requiring high ripple currents and thermal stability.
Buy Vishay MKP1848C65090JY5 now and experience unmatched reliability and power efficiency in high-density DC-link applications.
Frequently Asked Questions
Where can I buy Vishay MKP1848C65090JY5?
You can click on the BUY or RFQ button to purchase MKP1848C65090JY5 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MKP1848C65090JY5?
You can download the MKP1848C65090JY5 datasheet or visit the Vishay website for support.
Who is the manufacturer of MKP1848C65090JY5?
Vishay
