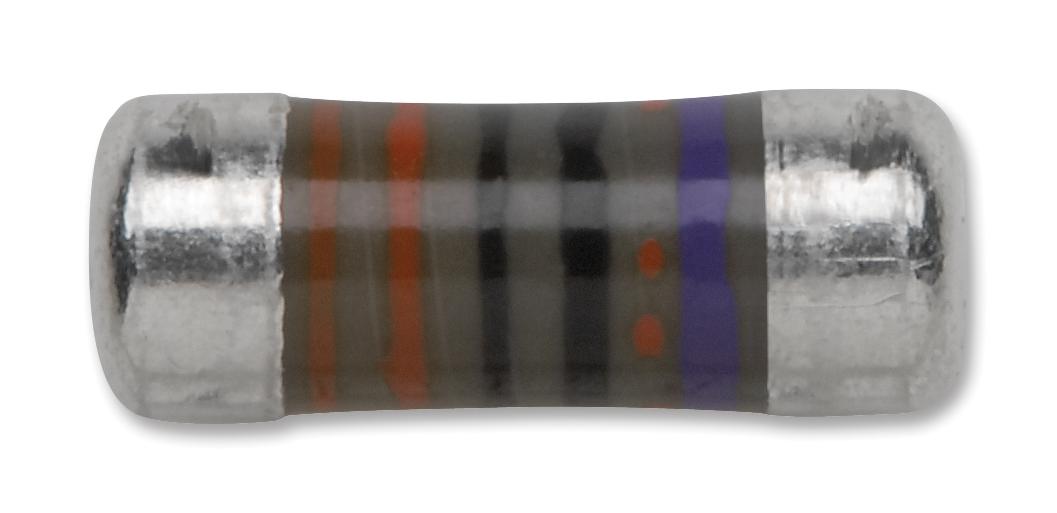

Vishay MMB0207MC1804FB200 High Voltage MELF Resistor
Vishay Beyschlag's MMB 0207 HV professional thin film MELF resistor is designed for high voltage, reliable operation in demanding applications like lighting and medical equipment. It features a resistance range of 340 kΩ to 10 MΩ, tolerance of ±1%, and a temperature coefficient of +50 ppm/K. With rated dissipation of 1.0W and maximum operating voltage of 1000V, it ensures stability across -55°C to 155°C. Encapsulated for mechanical and environmental protection, it is suitable for automatic assembly and reflow soldering, making it ideal for industrial and high-voltage electronic designs.
Vishay MMB0207MC1804FB200 High Voltage MELF Resistor Specifications:
- Resistance range: 340 kΩ to 10 MΩ
- Resistance tolerance: ±1%
- Temperature coefficient: +50 ppm/K
- Rated dissipation: 1.0W
- Operating voltage: 1000 V AC/DC
- Operating temperature: -55°C to 155°C
- Permissible insulation voltage: 500 V
- Dimensions: Length 5.8 mm, Width 2.2 mm, Height 3.2 mm
- Material: Metal film on ceramic body, nickel-plated steel terminations
- Soldering: Reflow and wave soldering compatible
Buy the Vishay MMB 0207 HV – Reliable High Voltage MELF Resistor for Industrial Applications
Order the Vishay MMB 0207 HV high voltage MELF resistor online today to ensure superior reliability in demanding electronic applications. Designed for operational voltages up to 1000V with a resistance range spanning 340kΩ to 10MΩ, this resistor is ideal for lighting, medical, and industrial equipment. Its construction offers excellent thermal stability, mechanical robustness, and compatibility with automatic SMD assembly processes. With a rated dissipation of 1.0W and an operating temperature range of -55°C to 155°C, it guarantees long-term performance and safety in high-voltage environments.
Get Vishay MMB 0207 HV today—built for high voltage stability and long-lasting durability.
Frequently Asked Questions
Where can I buy Vishay MMB0207MC1804FB200?
You can click on the BUY or RFQ button to purchase MMB0207MC1804FB200 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MMB0207MC1804FB200?
You can download the MMB0207MC1804FB200 datasheet or visit the Vishay website for support.
Who is the manufacturer of MMB0207MC1804FB200?
Vishay
