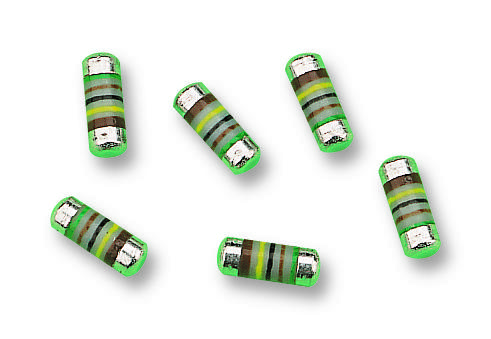

Vishay MMU01020C1002FB300 Automotive Thin Film MELF Resistor
The Vishay MMU 0102 series consists of automotive-grade thin film MELF surface mount resistors known for high reliability and stability, suitable for demanding electronic applications. Available in DIN0102 size, resistance ranges from 0.22 ohms to 2.21 megaohms with tolerances of ±5%, ±2%, ±1%, and ±0.5%. They feature a TCR of ±50 ppm/K or ±25 ppm/K, a power rating of 0.3W, and rated voltage of 150V. Operating within -55°C to +155°C, these resistors are certified automotive grade, employing advanced metal film technology for outstanding stability exceeding class 0.25, with available jumpers.
Vishay MMU01020C1002FB300 Automotive Thin Film MELF Resistor Specifications:
- Resistance Range: 0.22 Ω to 2.21 MO
- Tolerance: ±5%, ±2%, ±1%, ±0.5%
- Temperature Coefficient: ±50 ppm/K or ±25 ppm/K
- Rated Dissipation: 0.3W
- Operating Voltage: 150 V
- Operating Temperature Range: -55°C to +155°C
- Certification: Automotive grade, EN 140401-803
- Technology: Advanced metal film
- Stability: Exceeds class 0.25
- Package Size: DIN 0102
- Resistance Values: 0.22Ω to 2.21MΩ
- Resistance Tolerances: ±5%, ±2%, ±1%, ±0.5%
Buy the Buy Vishay Automotive Thin Film MELF Resistors Part Number MMU01020C1002FB300 Online
Discover the high-reliability Vishay automotive thin film MELF resistors, offering resistance from 0.22 ohms to 2.21 megaohms, with ultra-stable performance. These surface mount resistors feature a power rating of 0.3W, rated voltage of 150V, and operate across -55°C to +155°C, certified for automotive applications under EN 140401-803. Advanced metal film technology ensures outstanding stability, exceeding class 0.25, making them perfect for demanding electronics in automotive, medical, telecommunication, and industrial environments. Purchase online today for performance you can trust.
Buy Vishay MMU 0102 resistors now and experience unmatched reliability and stability for demanding electronic applications, ideal for automotive, telecommunication, and industrial sectors.
