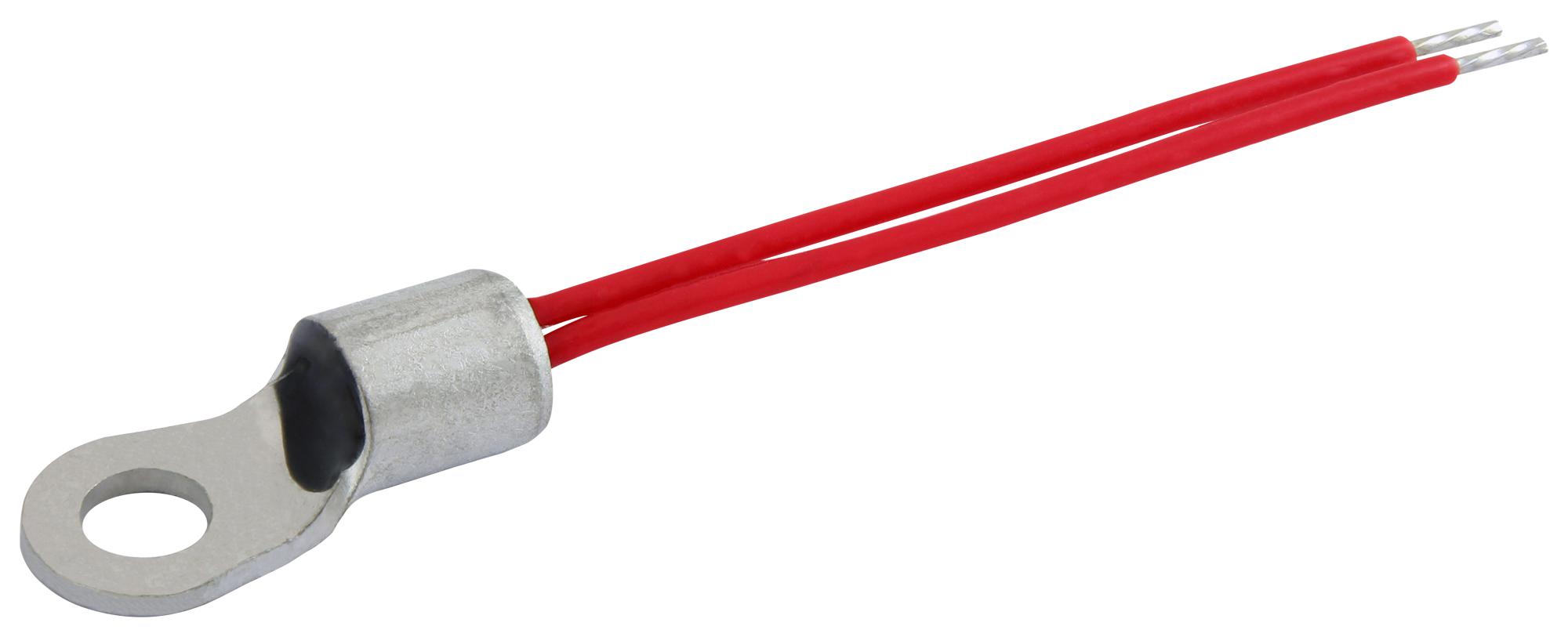

Vishay NTCALUG54A103G351A NTC Thermistor Sensor
This rugged lug mount NTC thermistor sensor is designed for precise surface temperature sensing in various industrial and automotive environments. It features a PTFE-insulated cable, easy mounting with a ring tongue terminal, and compatibility with screw mounting via M5 (Stud #10) screw. The sensor is AEC-Q200 Grade 1 qualified, UL recognized, and RoHS compliant, ensuring high durability, electrical insulation, and thermal contact. Ideal for applications requiring reliable thermal monitoring, it combines robust construction with versatile installation options, suitable for demanding industrial use and environmental durability.
Vishay NTCALUG54A103G351A NTC Thermistor Sensor Specifications:
- Resistance Value at 25°C: 10KΩ
- Tolerance on Resistance: ±2%
- B-value (Kelvin): 3435 to 3084 K
- Tolerance on B-value: +0.5% to #1%
- Operating Temperature Range: -40°C to +150°C
- Dissipation Factor: 23 mW/K
- Thermal Time Constant: 275 s
- Voltage Between Terminals: 1800 Vac
- Weight: 1.61 g
- Mounting: M5 (Stud #10), screw or bolt mount
- Cable Insulation: PTFE, rated 600 V, compliant with NEMA HP-3 type E
- Sensor Material: Soldered chip to silver plated copper leads, epoxy coating
- Packaging: Cardboard box
- RoHS Status: Compliant, with exemptions
- UL Recognition: File E148885, category COMPLIANT
Buy the Vishay 3984K – Reliable Temperature Sensor for Industrial Applications
Order Vishay NTCALUG54A103G351A today—this durable lug mount NTC thermistor features PTFE insulation, easy screw mounting, and UL recognition. Designed for surface temperature monitoring in industrial and automotive environments, it offers excellent thermal contact, electrical insulation, and rugged construction. With RoHS compliance and high precision, this sensor ensures reliable performance over wide temperature ranges, making it the perfect choice for demanding applications. Buy online now for quick delivery and dependable temperature sensing in your projects.
Get Vishay NTCALUG54A103G351A today—built for durability with easy lug mounting, ideal for demanding industrial and automotive temperature sensing applications.
Frequently Asked Questions
Where can I buy Vishay NTCALUG54A103G351A?
You can click on the BUY or RFQ button to purchase NTCALUG54A103G351A from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part NTCALUG54A103G351A?
You can download the NTCALUG54A103G351A datasheet or visit the Vishay website for support.
Who is the manufacturer of NTCALUG54A103G351A?
Vishay
