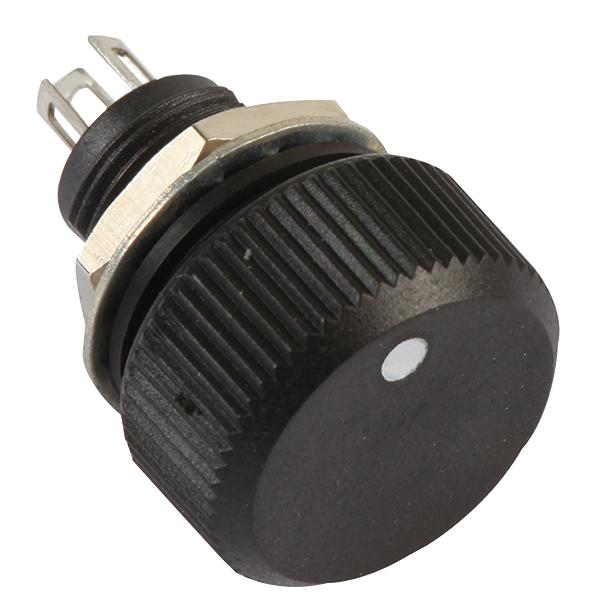

Vishay PA16NP104MAB15 Professional Rotary Potentiometer
The PA16S is a professional-grade potentiometer with a conductive plastic resistive element, featuring a 220° travel and an on/off switch. It offers a sealed, panel-mount design with IP67 protection, suitable for high-reliability applications including audio and industrial controls. The device provides stable electrical and mechanical performance, with options for metallic or plastic knobs, and compliance with RoHS standards. Its robust construction ensures durability in harsh environments, making it ideal for precise volume control, tuning, and automation systems in demanding settings.
Vishay PA16NP104MAB15 Professional Rotary Potentiometer Specifications:
- Resistive element: Conductive plastic
- Electrical travel: 220° ± 10°
- Power rating: 0.5 W at +40°C
- Resistance range: 100Ω to 10MΩ
- Dielectric strength: 2500 V RMS
- Insulation resistance: > 10^8 MΩ at 500 V
- Mechanical travel: 300° + 5°
- Operating torque: 2 N·cm typical
- End stop torque: 25 N·cm max
- Sealing: IP67 protected, fully sealed container and panel
- Temperature range: -40°C to +125°C (metal knob), -40°C to +85°C (plastic knob)
- Vibration resistance: 10 g for 6 hours
- Shock resistance: 8 shocks at 0.2 g in 3D
- Switch actuation: On/Off with 30° travel, max switching current 100 mA, max voltage 1000 V RMS.
- Switch cycling endurance: 10,000 cycles
- Switch actuation torque: ≥ 4 N·cm
- Switch actuation in counterclockwise position between terminal a and b
- Weight: approximately 45 g
- Knob options: Metallic black, white, or blue, with custom options available
- Panel thickness: up to 3 mm
- Mounting: Nut tightening torque max 250 N·cm
- RoHS compliant, Halogen-Free (JEDEC JS709A)
- Environmental: Suitable for harsh conditions with IP67 protection
Buy the Buy Vishay Sfernice P16S Part Number PA16NP104MAB15 Online
Enhance your projects with the Vishay Sfernice PA16NP104MAB15 potentiometer featuring IP67 sealing, 220° travel, and a rugged sealed design suitable for industrial, audio, and automation systems. Its conductive plastic element ensures stable electrical characteristics, while the switch offers reliable on/off operation. Easy to mount and designed for demanding environments, it complies with RoHS standards, making it a perfect choice for high-reliability applications requiring precise control and durability in harsh conditions.
Buy Vishay Sfernice PA16NP104MAB15 now and experience unmatched reliability and performance in industrial and audio control applications.
Frequently Asked Questions
Where can I buy Vishay PA16NP104MAB15?
You can click on the BUY or RFQ button to purchase PA16NP104MAB15 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PA16NP104MAB15?
You can download the PA16NP104MAB15 datasheet or visit the Vishay website for support.
Who is the manufacturer of PA16NP104MAB15?
Vishay
