Vishay SI7190ADPT1RE3 N-channel Power MOSFET
The Vishay Si7190ADP is a high-performance N-channel MOSFET designed for applications such as synchronous rectification, DC/DC converters, and lighting. Featuring a PowerPAK SO-8 package, it offers low on-resistance, high drain current capacity of 14.47A, and a drain-source voltage of 250V. The device is RoHS compliant, halogen-free, and undergoes 100% testing for reliability. It excels in minimizing thermal resistance, providing efficient power dissipation, and handling high voltage and current loads with robust thermal management and safe operating temperatures.
Vishay SI7190ADPT1RE3 N-channel Power MOSFET Specifications:
- Drain-source voltage Vos 250 V
- Gate-source voltage Ves 20 V
- Continuous drain current Ib 14.47 A
- Pulsed drain current Ibm 30 A
- On-state drain current Vos > 5 V, Ves=10 V 14.47 A
- Drain-source on-state resistance Rds(on) 0.102 Ω at Ves=10 V
- Maximum power dissipation Pp 3.2 W
- Operating junction temperature range -55 to +150 °C
- Maximum junction-to-ambient thermal resistance 25 °C/W
- Maximum junction-to-case thermal resistance 17 °C/W
- Soldering peak temperature 260°C
- Body diode forward voltage 0.75 V at 3.4 A
- Reverse recovery time 150 ns
- Body diode reverse recovery charge 630 nc
- Gate capacitance Ciss 860 pF
- Gate charge Qg 39 nC
- Turn-on delay time 13-30 μs
- Fall time 10-20 μs
- Temperature range -55°C to +150°C

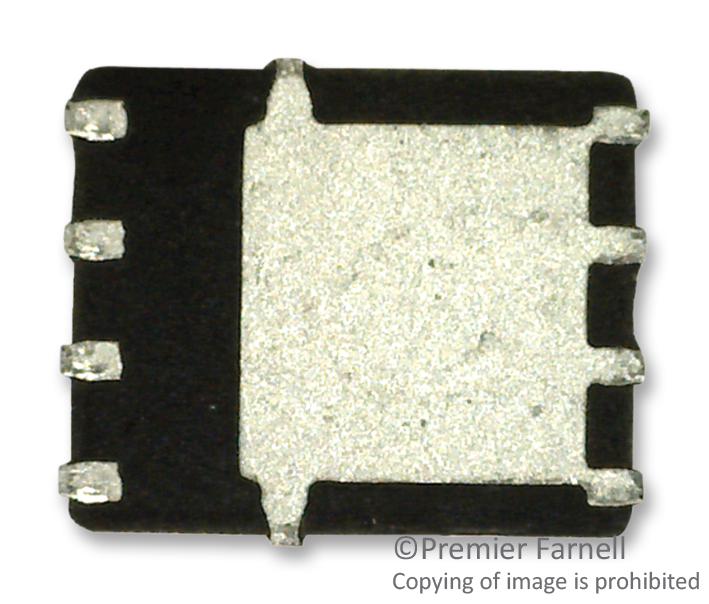

Buy the Vishay Series PowerPAK SO-8 N-Channel MOSFET: Si7190ADP
Purchase the Vishay Si7190ADP online today for reliable high-current switching capabilities. Designed for DC/DC converters and lighting, it features a 250V voltage rating, 14.47A drain current, and low Rds(on) for efficient power management. The PowerPAK SO-8 package ensures robust thermal performance, safety, and durability. Perfect for industrial, lighting, and power conversion applications, this MOSFET offers excellent reliability with RoHS compliance and extensive testing, making it a essential component for your high-power electronics projects.
Get Vishay Si7190ADP today—built for high-voltage switching and low Rds(on) performance in power applications.
Frequently Asked Questions
Where can I buy Vishay SI7190ADPT1RE3?
You can click on the BUY or RFQ button to purchase SI7190ADPT1RE3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part SI7190ADPT1RE3?
You can download the SI7190ADPT1RE3 datasheet or visit the Vishay website for support.
Who is the manufacturer of SI7190ADPT1RE3?
Vishay
