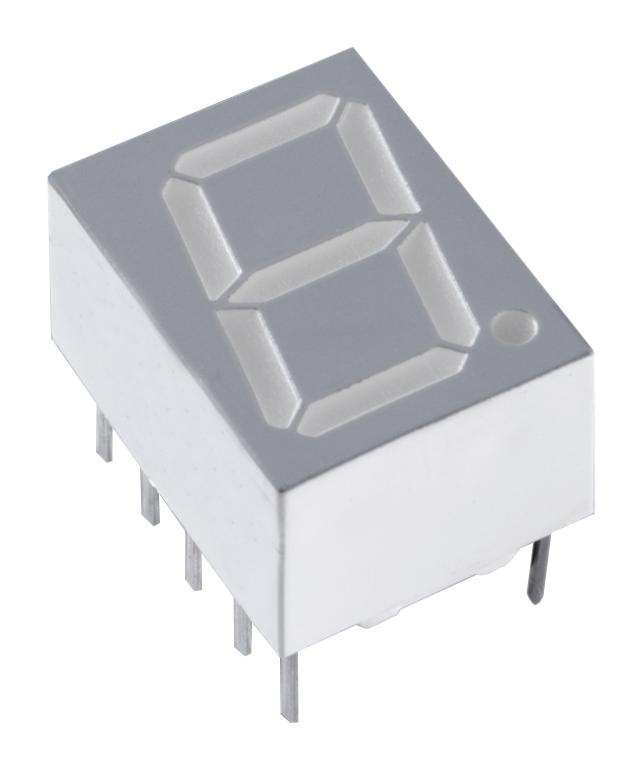

Vishay TDSO5150 Seven Segment LED Display
The TDS.51.. series are compact 13 mm character seven segment LED displays available in multiple bright colors, including orange red, yellow, and green. Designed for viewing distances up to 7 meters, these displays feature evenly lighted segments, a grey package surface, und tinted segments, and are categorized by luminous intensity for uniform appearance. Suitable for panel meters, test equipment, control units, and household devices, they support both DC and high peak currents, meeting RoHS standards and with a wide viewing angle for versatile applications.
Vishay TDSO5150 Seven Segment LED Display Specifications:
- Package: 13 mm
- Color: Orange red, yellow, green
- Luminous intensity: 700 to 2800 cd (orange red), 4200 to 14000 cd (yellow/green)
- Viewing angle: +50°
- Forward voltage: 2.3 V (green/Yellow), 2.4 V (yellow), 2.3 V (orange red)
- Typical forward current: 10-20 mA
- Peak wavelength: 581-585 nm (yellow), 612-625 nm (orange red and green)
- Reverse voltage: 6 V (segment), 15-18 V (LED)
- Operating temperature: -40°C to +85°C
- Storage temperature: -40°C to +85°C
- Soldering temperature: 260°C for 3 seconds
- Maximum power dissipation: 550 mW
- Material: Plastic package with epoxy resin
- Designed for durability with RoHS compliance
- Wide viewing angle, suitable for various display applications
- Compatible with DC and high peak current operation
Buy the Vishay TDSO5150 – Reliable Seven Segment Display for Industrial Applications
Enhance your projects with the Vishay TDSO5150 seven segment LED display, featuring bright colors, wide viewing angles, and reliable performance. Perfect for meters, control panels, and measurement devices, this compact 13 mm display offers excellent visibility and uniform illumination. Its robust construction supports high peak currents and operates efficiently over a broad temperature range. Add this versatile display to your online order now and ensure your instrumentation stands out with exceptional clarity and durability.
Order your Vishay Series TDSO5150 seven segment display today and enhance your instruments with dependable LED performance and vibrant illumination.
Frequently Asked Questions
Where can I buy Vishay TDSO5150?
You can click on the BUY or RFQ button to purchase TDSO5150 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part TDSO5150?
You can download the TDSO5150 datasheet or visit the Vishay website for support.
Who is the manufacturer of TDSO5150?
Vishay
