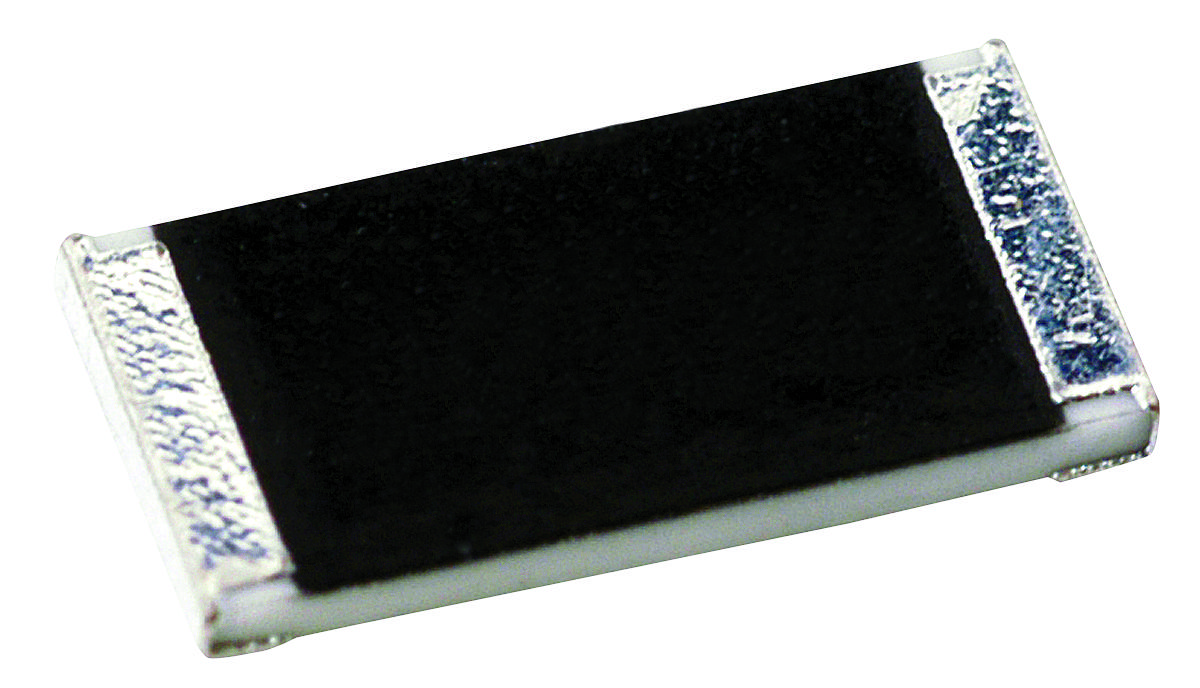

Vishay TNPW0603249KBEEA Thin Film Resistor
TNPW0603 e3 is a high stability, thin film flat chip resistor designed for precision electronics and demanding industrial applications. It features excellent stability under varying environmental conditions, moisture resistance, and sulfur resistance. Suitable for medical, automotive, and industrial equipment, this resistor offers a resistance range from 47Ω to 332kΩ with low TCR, rated dissipation up to 0.125 W, and operating temperatures from -85°C to 155°C. Compliant with RoHS standards, it ensures reliable performance in critical electronic circuits.
Vishay TNPW0603249KBEEA Thin Film Resistor Specifications:
- Physical Size: 0603 (RR1608M), Resistance Range: 47Ω to 332kΩ, Resistance Tolerance: ±1%; ±0.5%; ±0.1%, Temperature Coefficient: +25 to +50 ppm/K, Rated Dissipation: 0.125 W, Operating Voltage: Up to 75 V, Max Film Temperature: 125°C, Operating Temperature Range: -85°C to 155°C, Resistance Change at 1000h: <0.1%, <0.2% (depending on load), Sulfur Resistance: Verified, RoHS Compliant
Buy the Vishay Series TNPW Thin Film Resistors: TNPW0603
Experience the reliability of Vishay TNPW0603 high stability thin film resistors, perfect for medical, automotive, and industrial electronics. With excellent environmental stability, low resistance drift, and sulfur resistance, this resistor ensures precise performance in demanding applications. Featuring resistance ranges from 47Ω to 332kΩ, tolerance as low as ±0.1%, and stable operation from -85°C to 155°C, it is ideal for test equipment, measurement devices, and industrial systems. Order online now for fast, secure delivery and guaranteed quality.
Get Vishay TNPW0603 high stability thin film resistor today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy Vishay TNPW0603249KBEEA?
You can click on the BUY or RFQ button to purchase TNPW0603249KBEEA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part TNPW0603249KBEEA?
You can download the TNPW0603249KBEEA datasheet or visit the Vishay website for support.
Who is the manufacturer of TNPW0603249KBEEA?
Vishay
