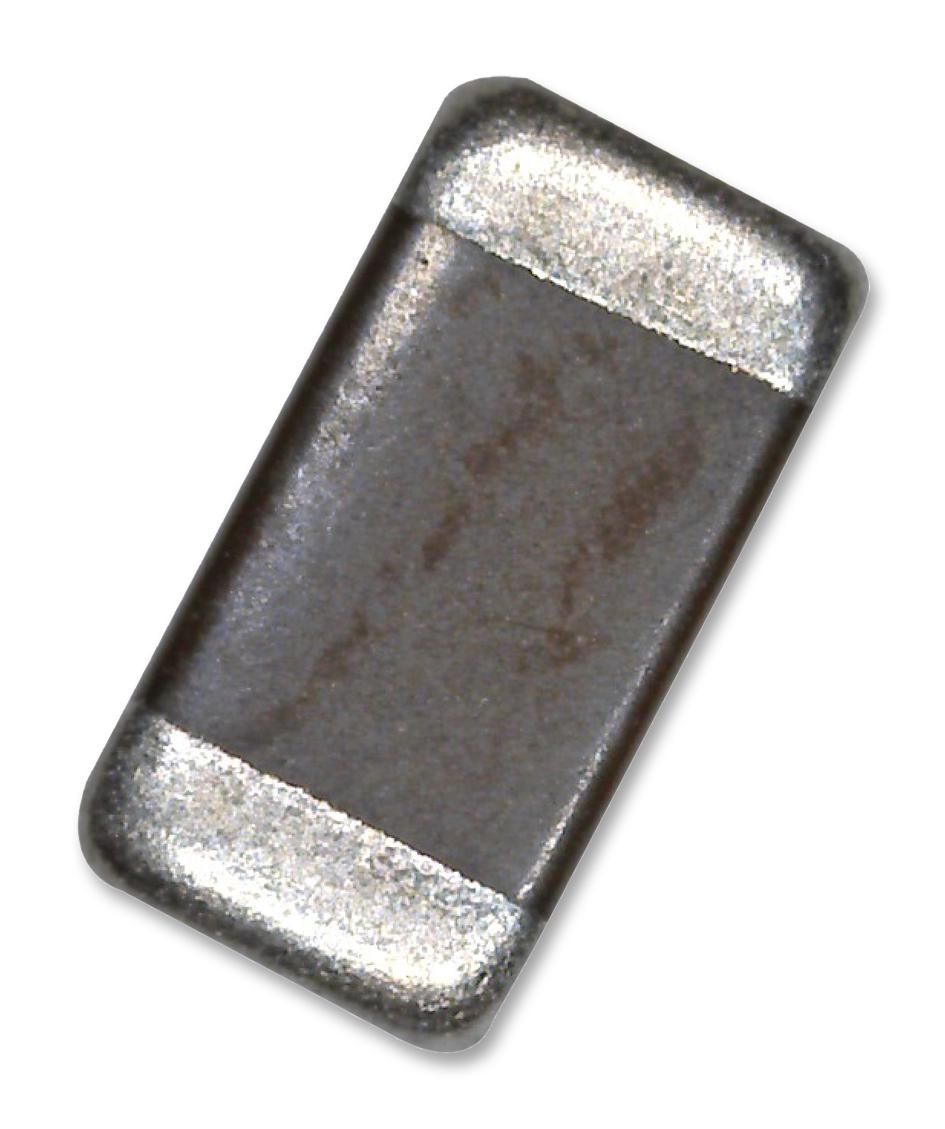

Vishay VJ0805Y474JXJTW1BC Ceramic Capacitor
This surface mount multilayer ceramic capacitor belongs to Vishay's Basic Commodity Series, offering high capacitance and stability for consumer, telecom, and mobile applications. Available in standard sizes from 0402 to 1210, it features low ESR, excellent reliability, and RoHS compliance. Suitable for high frequency circuits, it boasts a broad capacitance range with various dielectric types including X5R, X7R, and Y5V, operating at voltages up to 100 V. Designed with Ni-barrier or noble metal electrodes, these capacitors ensure optimal performance in diverse electronic environments.
Vishay VJ0805Y474JXJTW1BC Ceramic Capacitor Specifications:
- Ceramic material: BaTiO3 based
- Capacitance: 474 pF
- Voltage Range: up to 100 V (Vishay specifications vary by dielectric type)
- Operating Temperature: -55°C to +125°C (X7R, COG/NPO), -25°C to +85°C (Y5V)
- Dielectric Types: X5R, X7R, Y5V, COG (NP0)
- Size: 0805 (2.0 x 1.25 mm)
- Termination: Sn (matt) with Ni barrier, noble metal electrode system (Y5V uses BME)
- Construction: BaTiO3 ceramic layer, Ni inner electrode, Cu inner layer, middle layer termination
- Capacitance Tolerance: ±20% (Y5V), ±5% (X5R, X7R)
- Max Dissipation Factor: varies by dielectric type, typically <0.1 at 100 Hz
- Max Insulation Resistance: 210 GΩ or R x C > 500 Ω·F
- Storage Conditions: Store at 5°C to 40°C, relative humidity 20-70%, use within one year
Buy the Buy Vishay Capacitors Part Number VJ0805Y474JXJTW1BC Online
Purchase the Vishay ceramic capacitor VJ0805Y474JXJTW1BC online today to benefit from high performance, reliable operation, and proven durability in consumer electronics and telecommunications. Designed with high-quality materials and available in standard surface-mount sizes like 0805, it guarantees excellent capacitance stability over wide temperature ranges. Perfect for high-frequency applications, it ensures low ESR, high insulation resistance, and RoHS compliance. Experience quick delivery and competitive pricing—order now to enhance your electronic projects seamlessly.
Buy Vishay VJ0805Y474JXJTW1BC now and experience unmatched reliability and high-frequency stability for your electronic designs.
Frequently Asked Questions
Where can I buy Vishay VJ0805Y474JXJTW1BC?
You can click on the BUY or RFQ button to purchase VJ0805Y474JXJTW1BC from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VJ0805Y474JXJTW1BC?
You can download the VJ0805Y474JXJTW1BC datasheet or visit the Vishay website for support.
Who is the manufacturer of VJ0805Y474JXJTW1BC?
Vishay
